DanfossN5LD
The Hydro-Line N5LD Double Rod Cylinder is engineered for ANSI B93.15/NFPA interchangeability, offering robust durability for heavy-duty applications. This cylinder features a double rod design, ensuring equal displacement on both sides of the piston, and utilizes both ends extended tie rod mounts. It is ideal for tension, compression, and straight line force transfer applications where additional hardware may be attached.
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Danfoss
- Catalog no.
- N5LD
- Product type
- Mechanical Controls
- MasterFormat
- 23

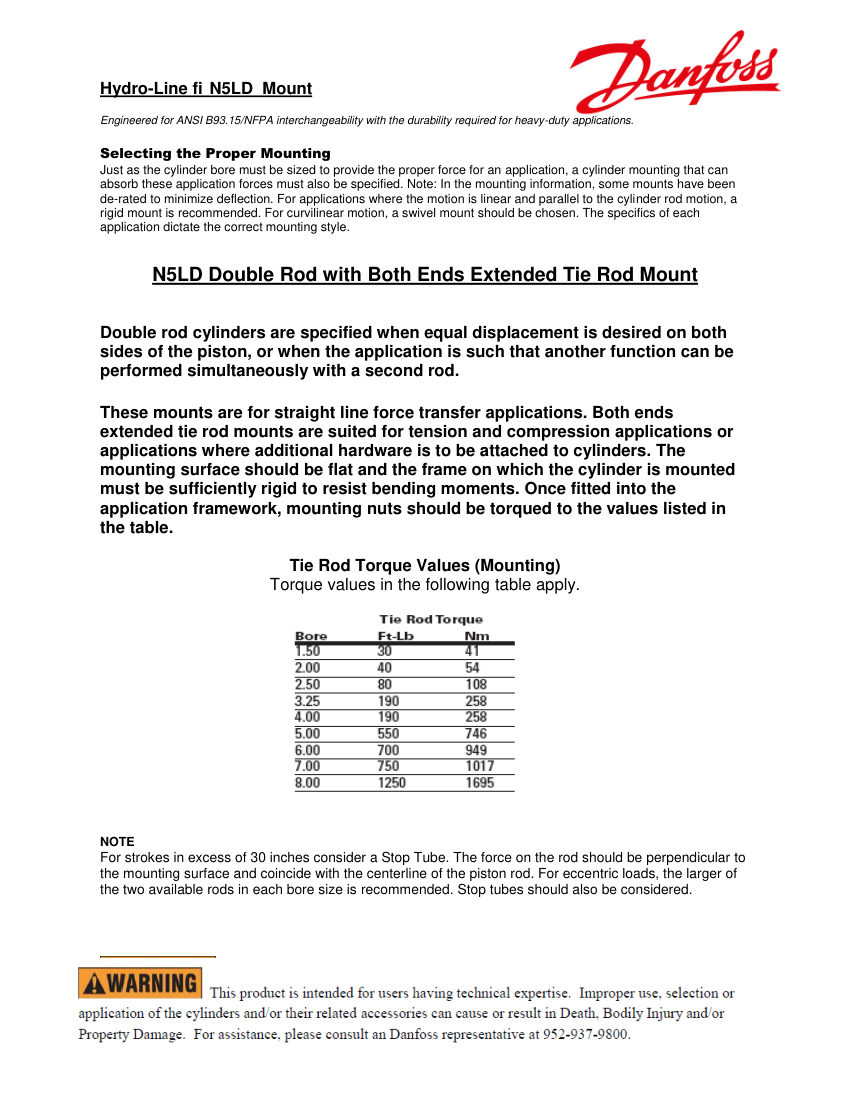

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | N5LD |
|---|---|
| Description | The Hydro-Line N5LD Double Rod Cylinder is engineered for ANSI B93.15/NFPA interchangeability, offering robust durability for heavy-duty applications. This cylinder features a double rod design, ensuring equal displacement on both sides of the piston, and utilizes both ends extended tie rod mounts. It is ideal for tension, compression, and straight line force transfer applications where additional hardware may be attached. |
- Official cut sheet, indexed
- Auto-matched to your schedule
- Cover + TOC, one click
