DanfossNZ10
Vickers NZ series cylinder mounts are engineered for ANSI B93.15/NFPA interchangeability, offering durability for heavy-duty applications. The NZ10 Cap Fixed Clevis Mount is specifically designed for machine members that travel in a curved path within one plane, supporting both compression and tension forces. Proper mounting selection, such as rigid for linear motion or swivel for curvilinear motion, is crucial to absorb application forces effectively.
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Danfoss
- Catalog no.
- NZ10
- Product type
- Mechanical Controls
- MasterFormat
- 23

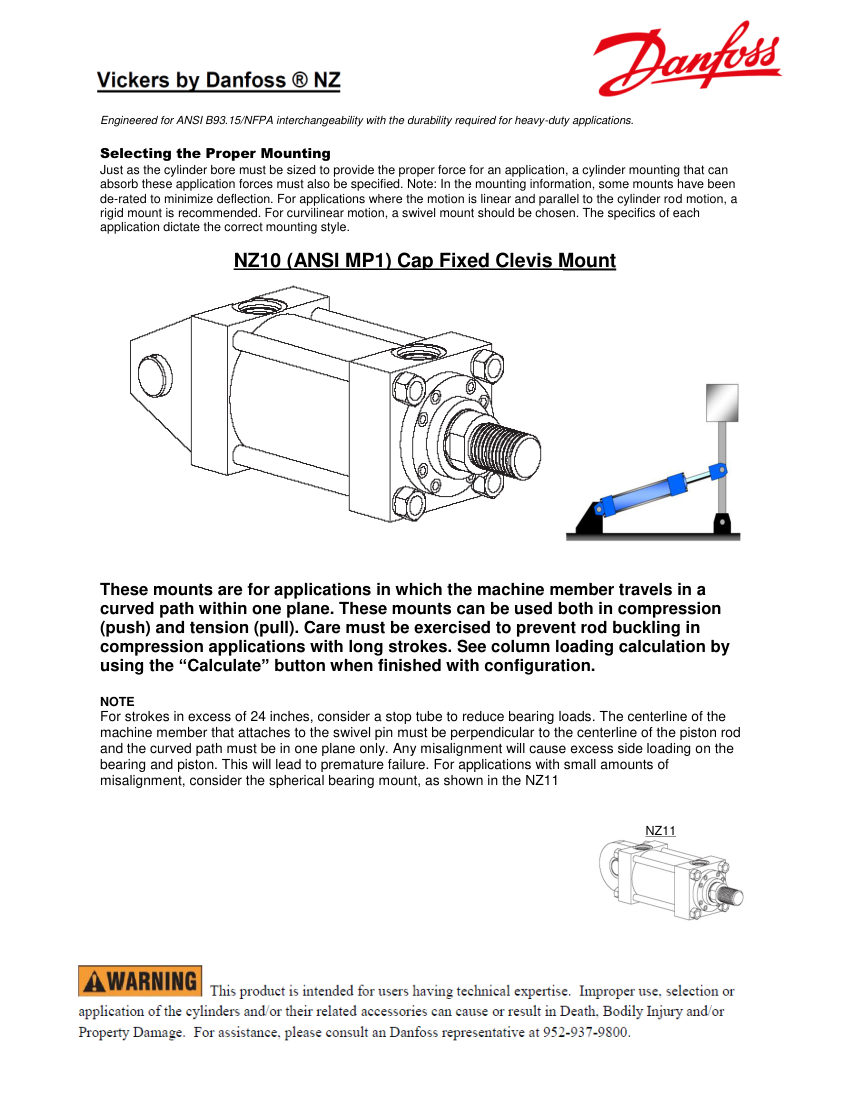

- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | NZ10 |
|---|---|
| Description | Vickers NZ series cylinder mounts are engineered for ANSI B93.15/NFPA interchangeability, offering durability for heavy-duty applications. The NZ10 Cap Fixed Clevis Mount is specifically designed for machine members that travel in a curved path within one plane, supporting both compression and tension forces. Proper mounting selection, such as rigid for linear motion or swivel for curvilinear motion, is crucial to absorb application forces effectively. |
Also cataloged as: NZ11
