DanfossNZ35

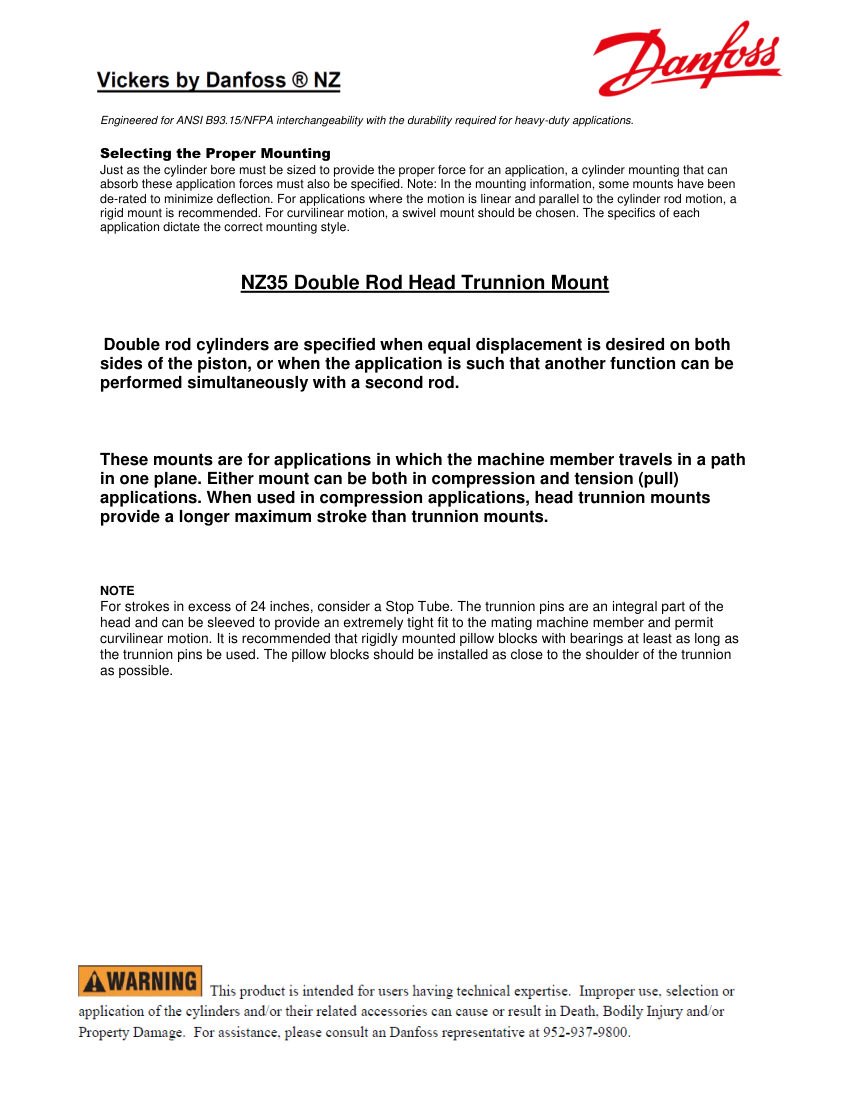

The Vickers NZ35 Double Rod Head Trunnion Mount is engineered for ANSI B93.15/NFPA interchangeability, offering robust durability for heavy-duty applications. This mount is ideal for double rod cylinders where equal displacement on both sides of the piston is desired, and it can absorb forces in both compression and tension. Its design allows for curvilinear motion and provides a longer maximum stroke in compression applications.
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Danfoss
- Catalog no.
- NZ35
- Product type
- Mechanical Controls
- MasterFormat
- 23
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | NZ35 |
|---|---|
| Description | The Vickers NZ35 Double Rod Head Trunnion Mount is engineered for ANSI B93.15/NFPA interchangeability, offering robust durability for heavy-duty applications. This mount is ideal for double rod cylinders where equal displacement on both sides of the piston is desired, and it can absorb forces in both compression and tension. Its design allows for curvilinear motion and provides a longer maximum stroke in compression applications. |
