ElevateBT-05 - BASE TIE-IN WITH QUICKSEAM RPF AND 2" METAL PLATES W

Elevate Base Tie-In (Roofing Detail). Model BT-05. Includes Quickseam RPF strip extending 1/2" (13 mm) beyond metal plate; Maximum fastener length is 10" (254 mm); Batten strips may substitute for metal plates in MAS and fully adhered systems; Membrane adhesive required between membrane and insulation for adhered systems. material: Rubbergard EPDM or Max EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBT-05---BASE-TIE-IN-WITH-QUICKSEAM-RPF-AND-2-METAL-PLATES-W.pdfData sheet

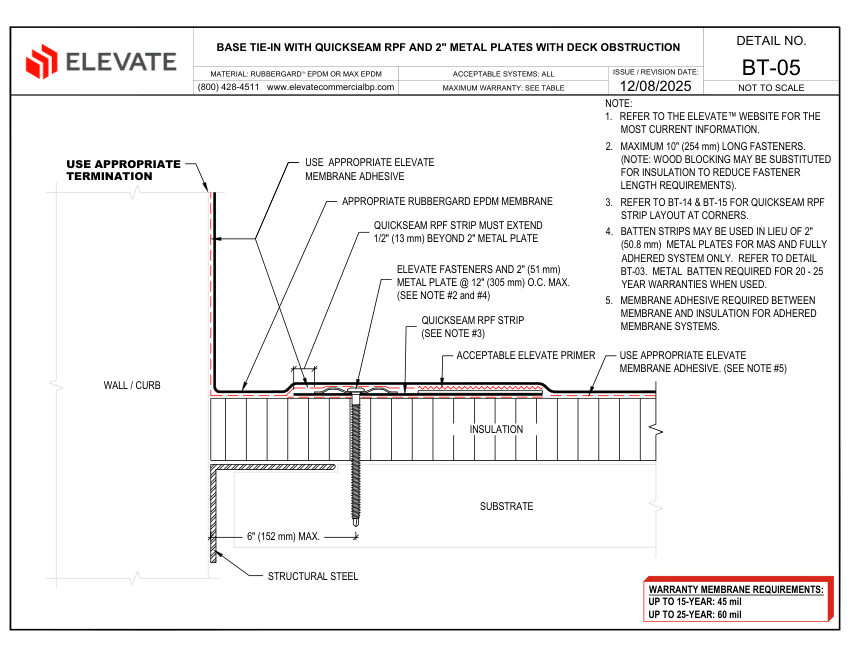

Elevate BT-05 - BASE TIE-IN WITH QUICKSEAM RPF AND 2" METAL PLATES W cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
BT-05 - BASE TIE-IN WITH QUICKSEAM RPF AND 2" METAL PLATES W
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBT-05 - BASE TIE-IN WITH QUICKSEAM RPF AND 2" METAL PLATES W
DescriptionElevate Base Tie-In (Roofing Detail). Model BT-05. Includes Quickseam RPF strip extending 1/2" (13 mm) beyond metal plate; Maximum fastener length is 10" (254 mm); Batten strips may substitute for metal plates in MAS and fully adhered systems; Membrane adhesive required between membrane and insulation for adhered systems. material: Rubbergard EPDM or Max EPDM
Connection size2" (50.8 mm) metal plates
End connectionElevate Fasteners and 2" Metal Plates
Mounting12" (305 mm) O.C. Max
Dimensions6" (152 mm) Max. Insulation
ComplianceWarranty: Up to 15-Year (45 mil), Up to 25-Year (60 mi
