ElevateBT-07 - BASE TIE-IN WITH 2" METAL PLATES FASTENED TO WALL/CU

Elevate Base Tie-In (Roofing Detail). Model BT-07. Uses 2" (51 mm) metal plates fastened to wall or curb; Membrane must extend 2" (51 mm) above the metal plate; Fasteners spaced at 12" (305 mm) O.C. maximum; Acceptable systems include adhered and mechanically attached. material: RubberGard EPDM or Max EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFBT-07---BASE-TIE-IN-WITH-2-METAL-PLATES-FASTENED-TO-WALL-CU.pdfData sheet

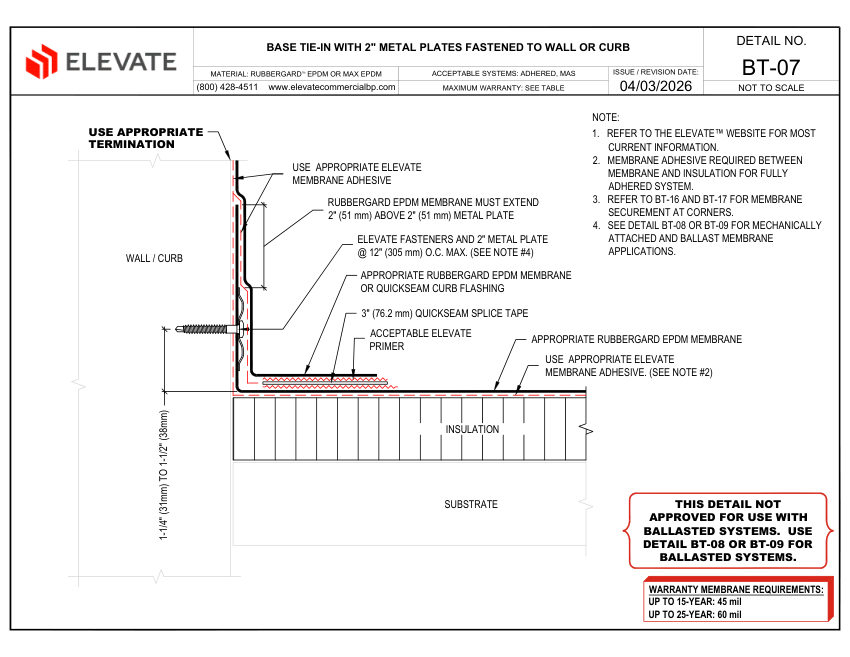

Elevate BT-07 - BASE TIE-IN WITH 2" METAL PLATES FASTENED TO WALL/CU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
BT-07 - BASE TIE-IN WITH 2" METAL PLATES FASTENED TO WALL/CU
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberBT-07 - BASE TIE-IN WITH 2" METAL PLATES FASTENED TO WALL/CU
DescriptionElevate Base Tie-In (Roofing Detail). Model BT-07. Uses 2" (51 mm) metal plates fastened to wall or curb; Membrane must extend 2" (51 mm) above the metal plate; Fasteners spaced at 12" (305 mm) O.C. maximum; Acceptable systems include adhered and mechanically attached. material: RubberGard EPDM or Max EPDM
Connection size2" (51 mm) metal plates
End connectionFastened to wall or curb
MountingAdhered or Mechanically Attached
DimensionsMembrane extends 2" (51 mm) above metal plate; Fasteners @ 12" (305 mm) O.C. max
ComplianceNot approved for ballasted systems.
