DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateCFP-16B.V0.1 - PROFILE

Elevate Standing Seam Roof Panel (Metal Roofing). Model CFP-16B. Net coverage is 16 inches (1 foot 4 inches); Maximum length is 30 feet for steel and 22 feet for aluminum; Steel gauge options range from 18 to 24 gauge; Aluminum thickness options range from 0.040" to 0.050". material: Coil-coated steel, Coil-coated aluminum, Anodized aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCFP-16B.V0.1---PROFILE.pdfData sheet

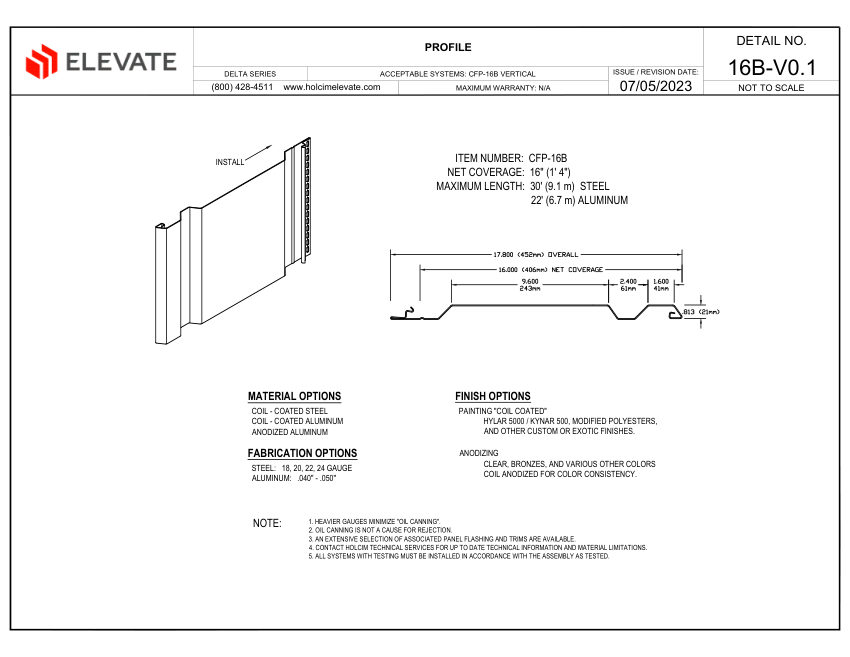

Elevate CFP-16B.V0.1 - PROFILE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
CFP-16B.V0.1 - PROFILE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCFP-16B.V0.1 - PROFILE
DescriptionElevate Standing Seam Roof Panel (Metal Roofing). Model CFP-16B. Net coverage is 16 inches (1 foot 4 inches); Maximum length is 30 feet for steel and 22 feet for aluminum; Steel gauge options range from 18 to 24 gauge; Aluminum thickness options range from 0.040" to 0.050". material: Coil-coated steel, Coil-coated aluminum, Anodized aluminum
FinishPainting (Hylar 5000, Kynar 500, Modified Polyesters), Anodizing (Clear, Bronzes, Custom)
MountingVertical
DimensionsNet Coverage: 16" (1' 4")
Max Length30' (9.1 m) Steel, 22' (6.7 m) Aluminum.
