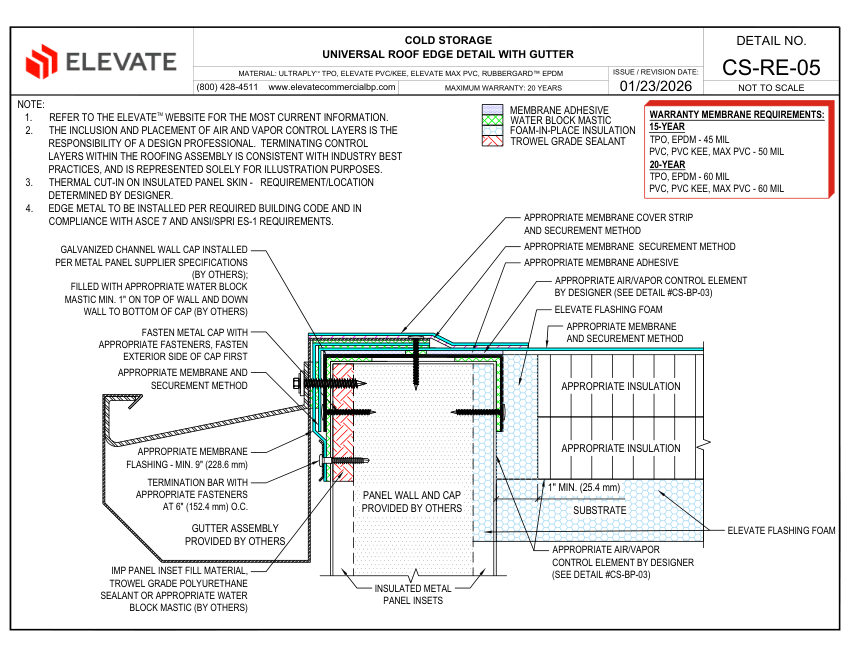

ElevateCS-RE-05 - COLD STORAGE - UNIVERSAL ROOF EDGE DETAIL WITH GU
Elevate Universal Roof Edge Detail with Gutter (Cold Storage Roofing). Model CS-RE-05. Maximum warranty of 20 years; Requires 45-mil TPO/EPDM or 50-mil PVC for 15-year warranty; Requires 60-mil TPO/EPDM or 60-mil PVC for 20-year warranty; Edge metal installation must comply with ASCE 7 and ANSI/SPRI ES-1. material: ULTRAPLY TPO, ELEVATE PVC/KEE, ELEVATE MAX PVC, RUBBERGARD EPDM
Free to start · No card required · The agent pulls this cut sheet in automatically
- Manufacturer
- Elevate
- Catalog no.
- CS-RE-05 - COLD STORAGE - UNIVERSAL ROOF EDGE DETAIL WITH GU
- Product type
- Roofing
- MasterFormat
- 07
- Cut sheet
- PDF · manufacturer current
Product details
| Catalog number | CS-RE-05 - COLD STORAGE - UNIVERSAL ROOF EDGE DETAIL WITH GU |
|---|---|
| Description | Elevate Universal Roof Edge Detail with Gutter (Cold Storage Roofing). Model CS-RE-05. Maximum warranty of 20 years; Requires 45-mil TPO/EPDM or 50-mil PVC for 15-year warranty; Requires 60-mil TPO/EPDM or 60-mil PVC for 20-year warranty; Edge metal installation must comply with ASCE 7 and ANSI/SPRI ES-1. material: ULTRAPLY TPO, ELEVATE PVC/KEE, ELEVATE MAX PVC, RUBBERGARD EPDM |
| Dimensions | Membrane flashing min. 9 in (228.6 mm); Termination bar fasteners at 6 in (152.4 mm) O.C.; Water block mastic min. 1 in (25.4 mm) |
| Compliance | ASCE 7, ANSI/SPRI ES-1. |
- Official cut sheet, indexed
