DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateCS-T-01 - COLD STORAGE - UNIVERSAL DECK TERMINATION AT PARAP

Elevate Universal Deck Termination at Parapet with Metal Coping (Cold Storage Roofing Detail). Model CS-T-01. Maximum warranty: 20 years; 15-year warranty requires 45 mil TPO/EPDM or 50 mil PVC; 20-year warranty requires 60 mil TPO/EPDM or 60 mil PVC; Includes galvanized channel wall cap filled with water block mastic. material: ULTRAPLY TPO, ELEVATE PVC/KEE, ELEVATE MAX PVC, RUBBERGARD EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCS-T-01---COLD-STORAGE---UNIVERSAL-DECK-TERMINATION-AT-PARAP.pdfData sheet

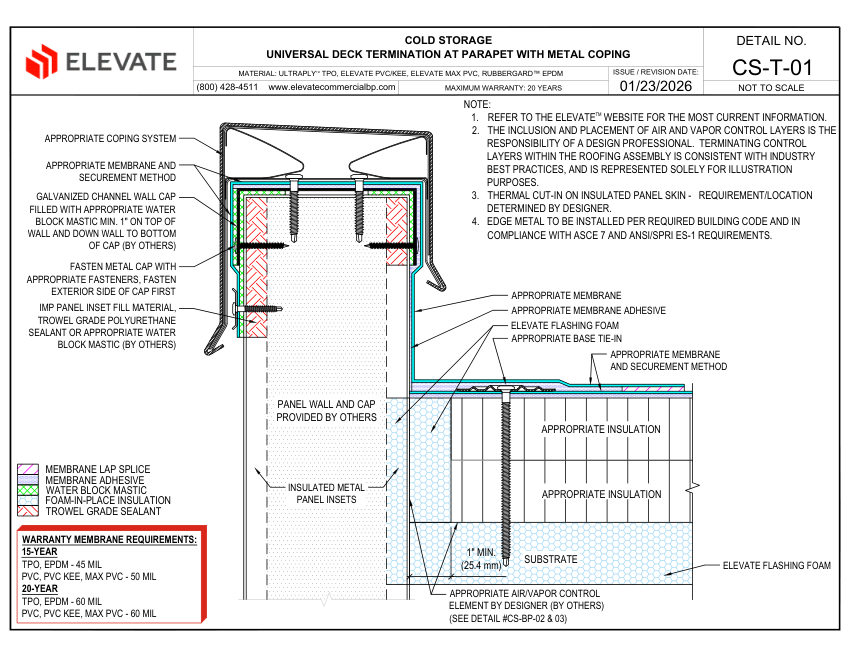

Elevate CS-T-01 - COLD STORAGE - UNIVERSAL DECK TERMINATION AT PARAP cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
CS-T-01 - COLD STORAGE - UNIVERSAL DECK TERMINATION AT PARAP
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCS-T-01 - COLD STORAGE - UNIVERSAL DECK TERMINATION AT PARAP
DescriptionElevate Universal Deck Termination at Parapet with Metal Coping (Cold Storage Roofing Detail). Model CS-T-01. Maximum warranty: 20 years; 15-year warranty requires 45 mil TPO/EPDM or 50 mil PVC; 20-year warranty requires 60 mil TPO/EPDM or 60 mil PVC; Includes galvanized channel wall cap filled with water block mastic. material: ULTRAPLY TPO, ELEVATE PVC/KEE, ELEVATE MAX PVC, RUBBERGARD EPDM
MountingFasten metal cap with appropriate fasteners, fasten exterior side of cap first
Dimensions1" min. substrate (25.4 mm)
ComplianceASCE 7, ANSI/SPRI ES-1.
