ElevateCS-T-03 - COLD STORAGE - UNIVERSAL DECK TERMINATION AT WALL

Elevate Universal Deck Termination at Wall with Counter-Flashing (Cold Storage). Model CS-T-03. Maximum warranty of 20 years; Requires polyurethane sealant at all vertical and horizontal joints above counter-flashing; Maximum 10" (254 mm) long fasteners; Membrane thickness requirements: 45-60 mil depending on material and warranty tier. material: ULTRAPLY TPO, ELEVATE PVC/KEE, ELEVATE MAX PVC, RUBBERGARD EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFCS-T-03---COLD-STORAGE---UNIVERSAL-DECK-TERMINATION-AT-WALL.pdfData sheet

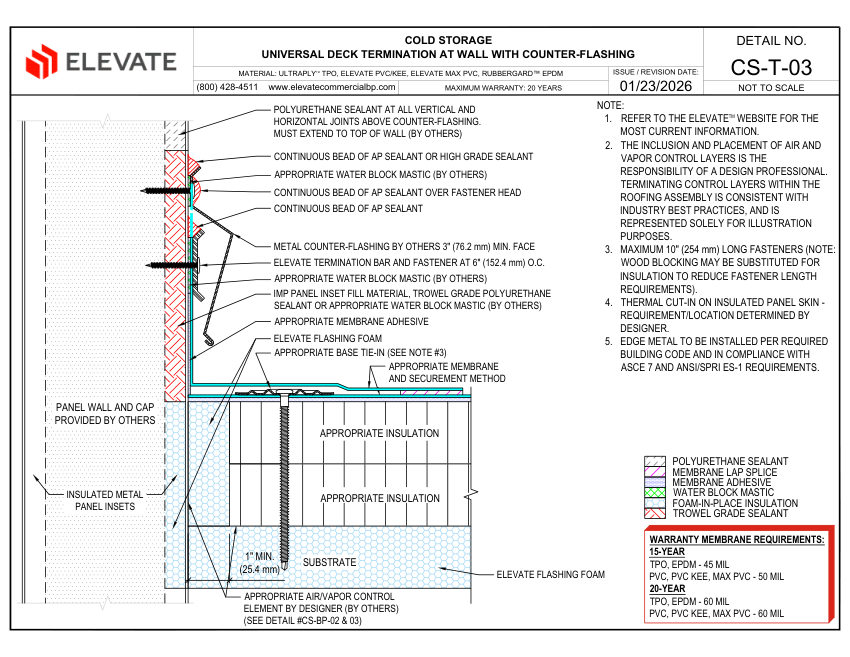

Elevate CS-T-03 - COLD STORAGE - UNIVERSAL DECK TERMINATION AT WALL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
CS-T-03 - COLD STORAGE - UNIVERSAL DECK TERMINATION AT WALL
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberCS-T-03 - COLD STORAGE - UNIVERSAL DECK TERMINATION AT WALL
DescriptionElevate Universal Deck Termination at Wall with Counter-Flashing (Cold Storage). Model CS-T-03. Maximum warranty of 20 years; Requires polyurethane sealant at all vertical and horizontal joints above counter-flashing; Maximum 10" (254 mm) long fasteners; Membrane thickness requirements: 45-60 mil depending on material and warranty tier. material: ULTRAPLY TPO, ELEVATE PVC/KEE, ELEVATE MAX PVC, RUBBERGARD EPDM
MountingELEVATE TERMINATION BAR AND FASTENER AT 6" (152.4 mm) O.C.
DimensionsMETAL COUNTER-FLASHING 3" (76.2 mm) MIN. FACE
ComplianceASCE 7, ANSI/SPRI ES-1.
