DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateE-10 - EXPANSION JOINT (FIELD FABRICATED) WITH QUICKSEAM SPL

Elevate Expansion Joint (Roofing Expansion Joint). Model E-10. Field fabricated expansion joint with QuickSeam splice tape; Compatible with RubberGard EPDM or Max EPDM membranes; Requires compressible tube diameter to exceed deck opening by 50% min; Uses 3" (76.2 mm) QuickSeam Splice Tape with appropriate adhesive. material: RubberGard EPDM or Max EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFE-10---EXPANSION-JOINT-FIELD-FABRICATED-WITH-QUICKSEAM-SPL.pdfData sheet

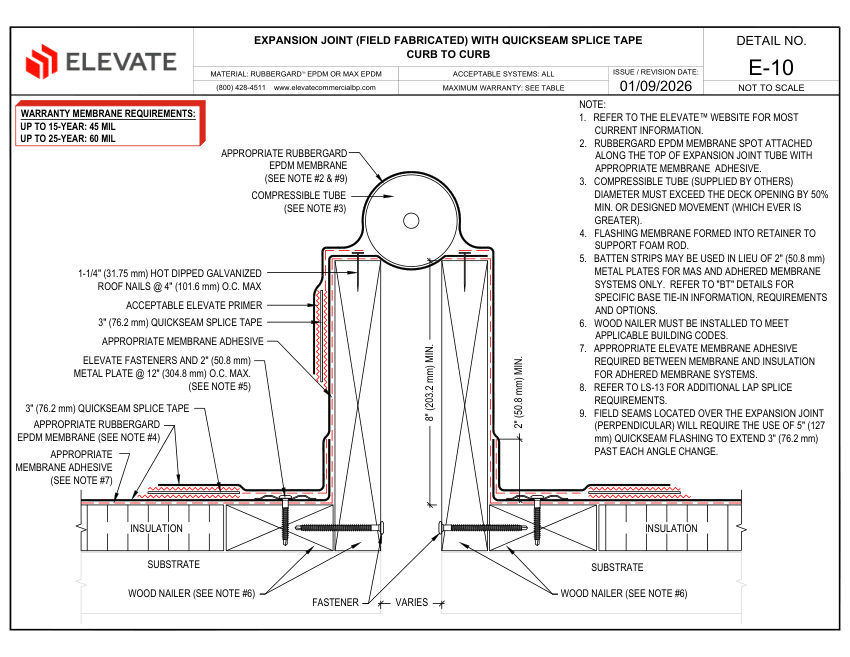

Elevate E-10 - EXPANSION JOINT (FIELD FABRICATED) WITH QUICKSEAM SPL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
E-10 - EXPANSION JOINT (FIELD FABRICATED) WITH QUICKSEAM SPL
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberE-10 - EXPANSION JOINT (FIELD FABRICATED) WITH QUICKSEAM SPL
DescriptionElevate Expansion Joint (Roofing Expansion Joint). Model E-10. Field fabricated expansion joint with QuickSeam splice tape; Compatible with RubberGard EPDM or Max EPDM membranes; Requires compressible tube diameter to exceed deck opening by 50% min; Uses 3" (76.2 mm) QuickSeam Splice Tape with appropriate adhesive. material: RubberGard EPDM or Max EPDM
Connection size3" (76.2 mm) QuickSeam Splice Tape
End connectionCurb to Curb
Mounting1-1/4" (31.75 mm) Hot Dipped Galvanized Roof Nails @ 4" (101.6 mm) O.C. Max
Dimensions8" (203.2 mm) Min. Flange; 2" (50.8 mm) Min. Metal Plate; compli
