ElevateElevate MB Rail Fascia - Built-Up or Modified Version - Lap

Elevate Metal Roof Edge Fascia (Roofing). Model Elevate MB Rail Fascia - Lap Joint. Designed for Built-Up or Modified Roofing Membranes; Includes 6" Stainless Steel Spring clips at 4'-0" O.C.; Requires 1/4" band of flashing cement on deck flange; Uses 3/8" bead of Water Block sealant at splices and miters. material: 20 GA. Galvanized Formed Rail, 6" Stainless Steel Spring

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFElevate-MB-Rail-Fascia---Built-Up-or-Modified-Version---Lap.pdfData sheet

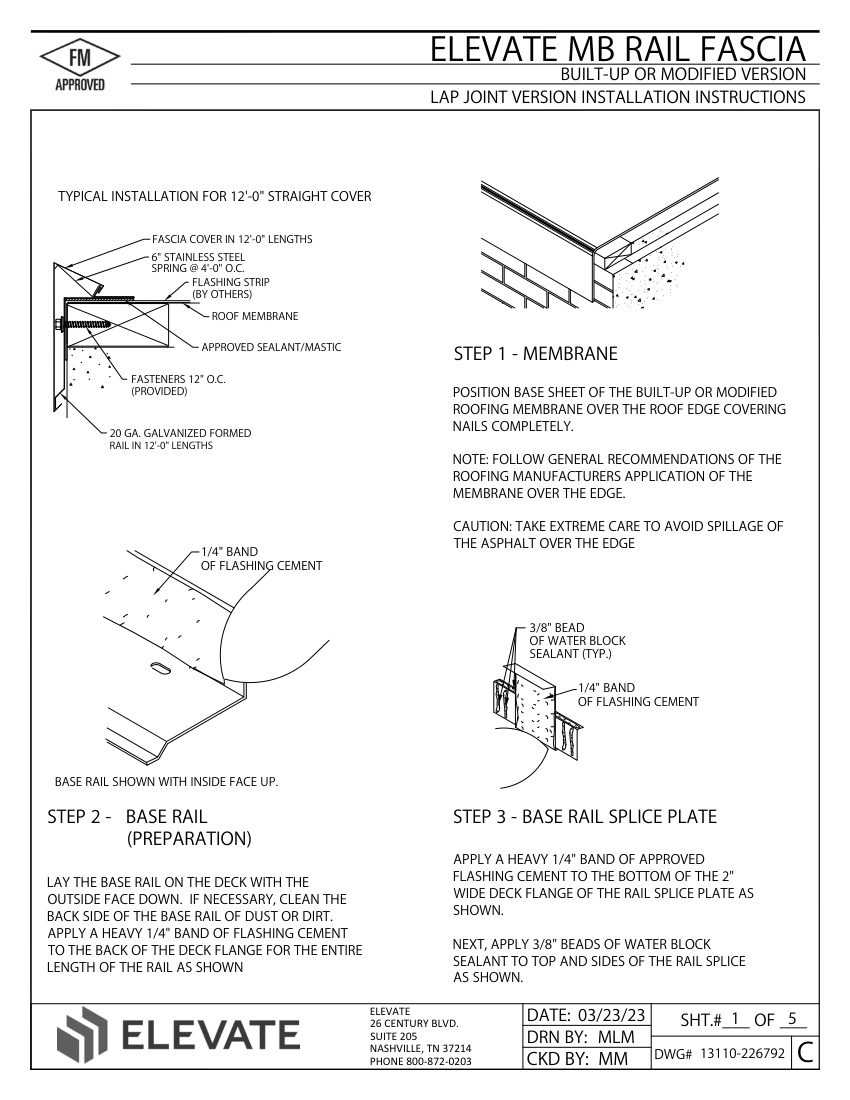

Elevate Elevate MB Rail Fascia - Built-Up or Modified Version - Lap cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
Elevate MB Rail Fascia - Built-Up or Modified Version - Lap
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberElevate MB Rail Fascia - Built-Up or Modified Version - Lap
DescriptionElevate Metal Roof Edge Fascia (Roofing). Model Elevate MB Rail Fascia - Lap Joint. Designed for Built-Up or Modified Roofing Membranes; Includes 6" Stainless Steel Spring clips at 4'-0" O.C.; Requires 1/4" band of flashing cement on deck flange; Uses 3/8" bead of Water Block sealant at splices and miters. material: 20 GA. Galvanized Formed Rail, 6" Stainless Steel Spring
Connection size12'-0" Lengths
End connectionLap Joint with Splice Plate
FinishGalvanized
MountingFastened 12" O.C. with provided fasteners
Dimensions12'-0" straight cover.
