DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateElevate Seal-Tite Half Round Gutter - Vertical Fascia - Spli

Elevate Half Round Gutter (Gutter). Model Elevate Seal-Tite Half Round Gutter - Vertical Fascia - Splice Plate Version. Vertical fascia installation; Splice plate version with 6" wide concealed splice

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFElevate-Seal-Tite-Half-Round-Gutter---Vertical-Fascia---Spli.pdfData sheet

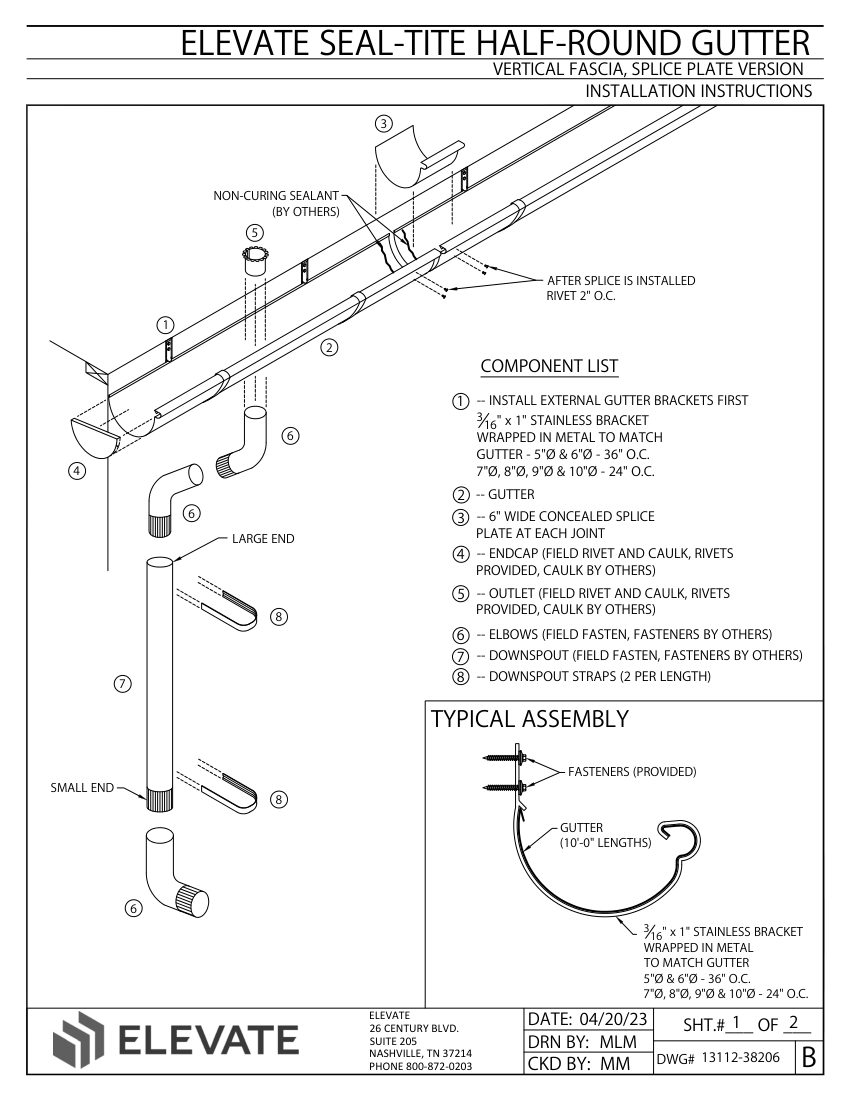

Elevate Elevate Seal-Tite Half Round Gutter - Vertical Fascia - Spli cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
Elevate Seal-Tite Half Round Gutter - Vertical Fascia - Spli
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberElevate Seal-Tite Half Round Gutter - Vertical Fascia - Spli
DescriptionElevate Half Round Gutter (Gutter). Model Elevate Seal-Tite Half Round Gutter - Vertical Fascia - Splice Plate Version. Vertical fascia installation; Splice plate version with 6" wide concealed splice
Bracket spacing36" O.C. for 5"/6" Ø, 24" O.C. for 7"-10" Ø; Includes stainless brackets wrapped in matching metal. material: Stainless (brackets), Metal (gutter)
Connection size5"Ø, 6"Ø, 7"Ø, 8"Ø, 9"Ø, 10"Ø
End connectionSplice Plate, Endcap, Outlet
FinishMatch Gutter
MountingExternal Gutter Brackets
Dimensions10'-0" lengths, 6" wide splice plate, 16" x 1" brackets.
