DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateEPDM-SA-BT-4 - BASE TIE-IN WITH QUICKSEAM RPF AND 2" METAL P

Elevate Base Tie-In (Roofing Detail). Model EPDM-SA-BT-04. Requires Quickseam RPF strip extending 1/2" beyond metal plate; Approved primers include Quick Prime Plus and Single-Ply LVOC Primer; Detail required for elevated internal pressure or increased wind speed warranty; Wood blocking may substitute for insulation to reduce fastener length. material: EPDM SA

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEPDM-SA-BT-4---BASE-TIE-IN-WITH-QUICKSEAM-RPF-AND-2-METAL-P.pdfData sheet

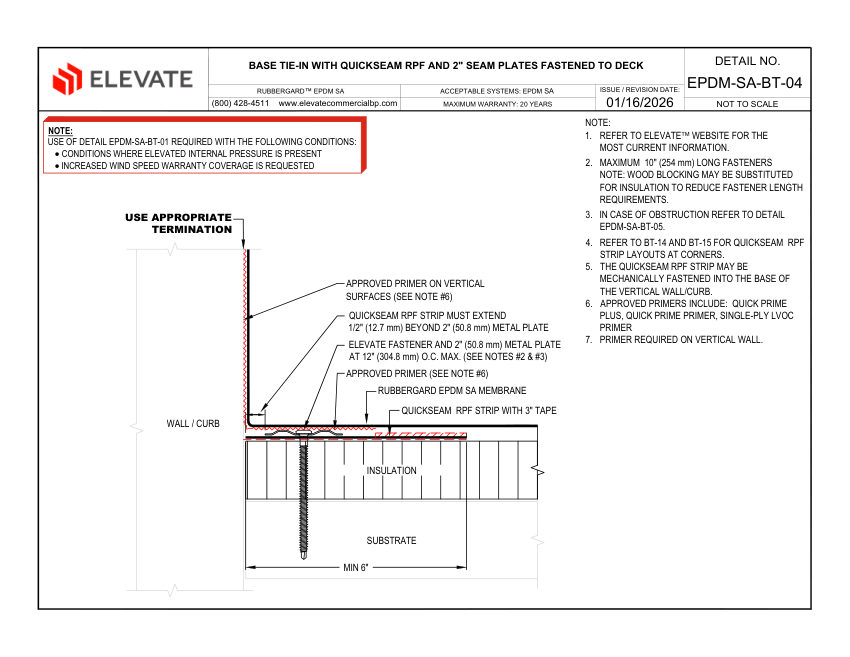

Elevate EPDM-SA-BT-4 - BASE TIE-IN WITH QUICKSEAM RPF AND 2" METAL P cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
EPDM-SA-BT-4 - BASE TIE-IN WITH QUICKSEAM RPF AND 2" METAL P
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEPDM-SA-BT-4 - BASE TIE-IN WITH QUICKSEAM RPF AND 2" METAL P
DescriptionElevate Base Tie-In (Roofing Detail). Model EPDM-SA-BT-04. Requires Quickseam RPF strip extending 1/2" beyond metal plate; Approved primers include Quick Prime Plus and Single-Ply LVOC Primer; Detail required for elevated internal pressure or increased wind speed warranty; Wood blocking may substitute for insulation to reduce fastener length. material: EPDM SA
Connection size2" (50.8 mm) metal plates
End connectionMechanically fastened to deck
MountingFasteners at 12" (304.8 mm) O.C. max
DimensionsMax 10" (254 mm) fastener length
Compliance20 Year Maximum Warranty.
