ElevateEPDM-SA-RE-05 - ROOF EDGE WITH DRAIN BAR

Elevate Roof Edge with Drain Bar (Roofing). Model EPDM-SA-RE-05. Compatible with RubberGard EPDM SA membrane; Maximum warranty of 20 years; Requires continuous bead of lap sealant and water block; Wood nailer must be installed to meet applicable building codes. material: EPDM SA Membrane, Hot Dipped Galvanized Roof Nails, Wood Nailer, Metal Counter-Flashing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEPDM-SA-RE-05---ROOF-EDGE-WITH-DRAIN-BAR.pdfData sheet

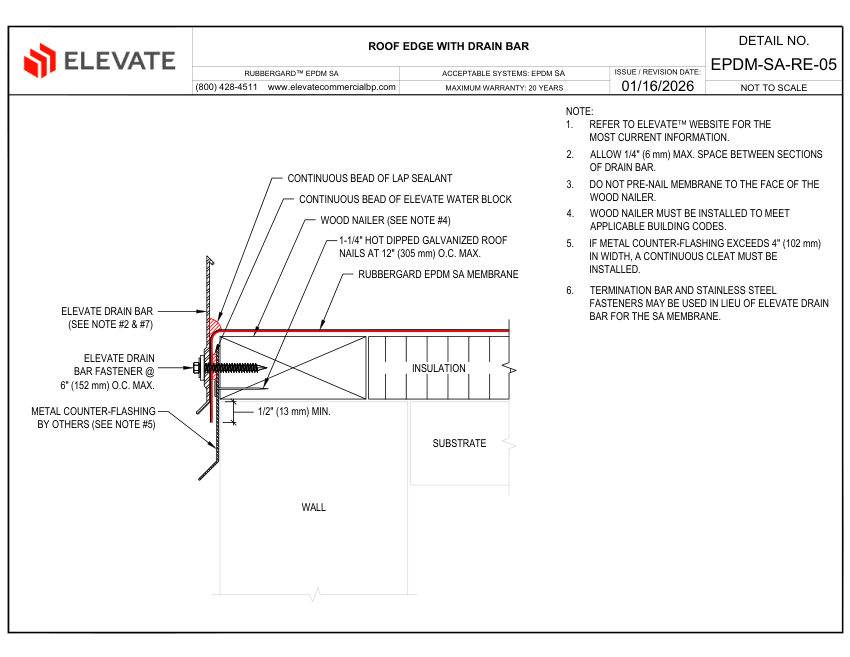

Elevate EPDM-SA-RE-05 - ROOF EDGE WITH DRAIN BAR cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
EPDM-SA-RE-05 - ROOF EDGE WITH DRAIN BAR
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEPDM-SA-RE-05 - ROOF EDGE WITH DRAIN BAR
DescriptionElevate Roof Edge with Drain Bar (Roofing). Model EPDM-SA-RE-05. Compatible with RubberGard EPDM SA membrane; Maximum warranty of 20 years; Requires continuous bead of lap sealant and water block; Wood nailer must be installed to meet applicable building codes. material: EPDM SA Membrane, Hot Dipped Galvanized Roof Nails, Wood Nailer, Metal Counter-Flashing
MountingDrain Bar Fastener @ 6" (152 mm) O.C. Max, Roof Nails @ 12" (305 mm) O.C. Max
DimensionsMax 1/4" (6 mm) space between drain bar sections, Min 1/2" (13 mm) substrate
ComplianceApplicable Building Codes.
