ElevateEPDM-SA-T-07 - TERMINATION AT R.T.U. WITH COUNTER-FLASHING (

Elevate Roofing Termination Detail (RubberGard EPDM SA). Model EPDM-SA-T-07. Maximum warranty of 20 years; Fasteners spaced at 12" (305 mm) O.C. max; Metal counter-flashing must be 24 gauge steel or .032" min aluminum; AP Sealant required over fastener heads and along curb flange edge. material: EPDM SA Membrane, 24 Gauge Pre-Finished Steel or .032" Min. Aluminum Counter-Flashing

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEPDM-SA-T-07---TERMINATION-AT-R.T.U.-WITH-COUNTER-FLASHING.pdfData sheet

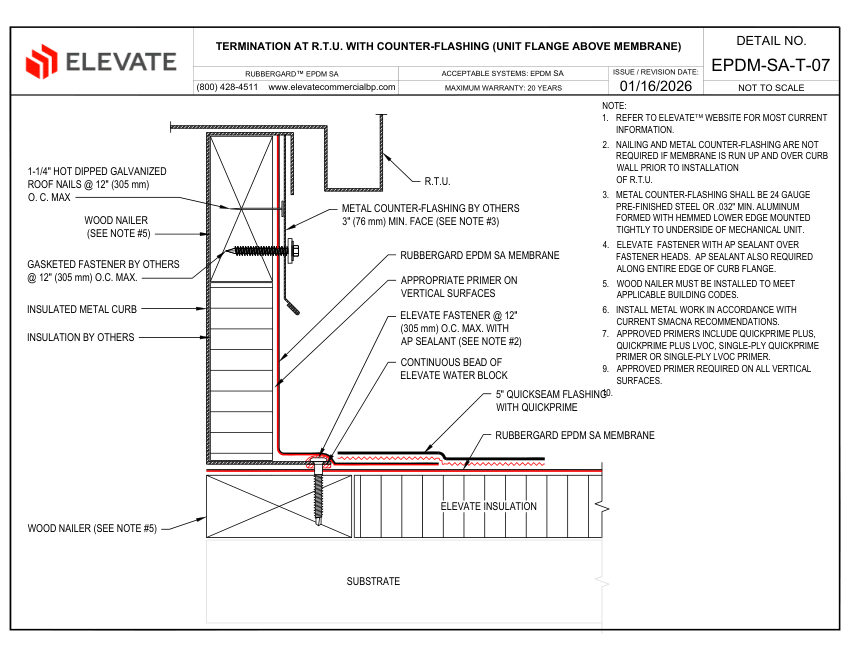

Elevate EPDM-SA-T-07 - TERMINATION AT R.T.U. WITH COUNTER-FLASHING ( cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
EPDM-SA-T-07 - TERMINATION AT R.T.U. WITH COUNTER-FLASHING (
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEPDM-SA-T-07 - TERMINATION AT R.T.U. WITH COUNTER-FLASHING (
DescriptionElevate Roofing Termination Detail (RubberGard EPDM SA). Model EPDM-SA-T-07. Maximum warranty of 20 years; Fasteners spaced at 12" (305 mm) O.C. max; Metal counter-flashing must be 24 gauge steel or .032" min aluminum; AP Sealant required over fastener heads and along curb flange edge. material: EPDM SA Membrane, 24 Gauge Pre-Finished Steel or .032" Min. Aluminum Counter-Flashing
Connection size1-1/4" Hot Dipped Galvanized Roof Nails
End connectionGasketed Fastener, Elevate Fastener with AP Sealant
FinishPre-Finished Steel or Aluminum
MountingTermination at R.T.U. with Counter-Flashi
