ElevateEPDM-SA-T-08 - TERMINATION AT R.T.U. WITH QUICKSEAM RPF AND

Elevate Roof Termination Detail (RubberGard EPDM SA). Model EPDM-SA-T-08. Maximum warranty of 20 years; Requires approved primer on all vertical surfaces; Fastener spacing maximum 12" (305 mm) O.C.; Metal counter-flashing must be mounted tightly to underside of mechanical unit. material: EPDM SA Membrane, 24 Gauge Pre-Finished Steel or .032" Min. Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEPDM-SA-T-08---TERMINATION-AT-R.T.U.-WITH-QUICKSEAM-RPF-AND.pdfData sheet

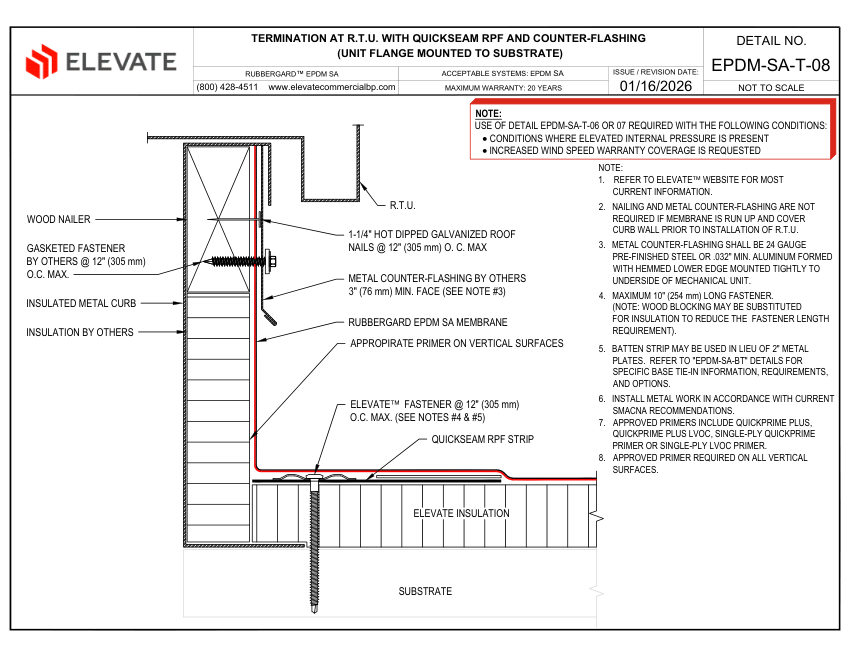

Elevate EPDM-SA-T-08 - TERMINATION AT R.T.U. WITH QUICKSEAM RPF AND cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
EPDM-SA-T-08 - TERMINATION AT R.T.U. WITH QUICKSEAM RPF AND
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEPDM-SA-T-08 - TERMINATION AT R.T.U. WITH QUICKSEAM RPF AND
DescriptionElevate Roof Termination Detail (RubberGard EPDM SA). Model EPDM-SA-T-08. Maximum warranty of 20 years; Requires approved primer on all vertical surfaces; Fastener spacing maximum 12" (305 mm) O.C.; Metal counter-flashing must be mounted tightly to underside of mechanical unit. material: EPDM SA Membrane, 24 Gauge Pre-Finished Steel or .032" Min. Aluminum
End connectionQuickseam RPF and Counter-Flashing
FinishPre-Finished
MountingUnit Flange Mounted to Substrate
Dimensions3" (76 mm) Min. Face, 12" (305 mm) O.C. Max. Fastener Spacing
ComplianceSMACNA Recommendations.
