DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateES1-C-01 - SLOPED COPING MAXIMUM 8" WIDE

Elevate Sloped Coping (Roofing Coping). Model ES1-C-01. Maximum width 8 inches; ANSI/SPRI ES-1 tested resistance; 20-year maximum warranty; Compatible with all acceptable systems. material: Thermoplastic, EPDM, Asphalt, 24 Ga Steel, 24 Ga Stainless Steel, 0.040 Aluminum, 20 Oz Copper, 24 Ga Galvalume, 22 Ga Stainless Steel, 22 Ga Galvalume

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFES1-C-01---SLOPED-COPING-MAXIMUM-8-WIDE.pdfData sheet

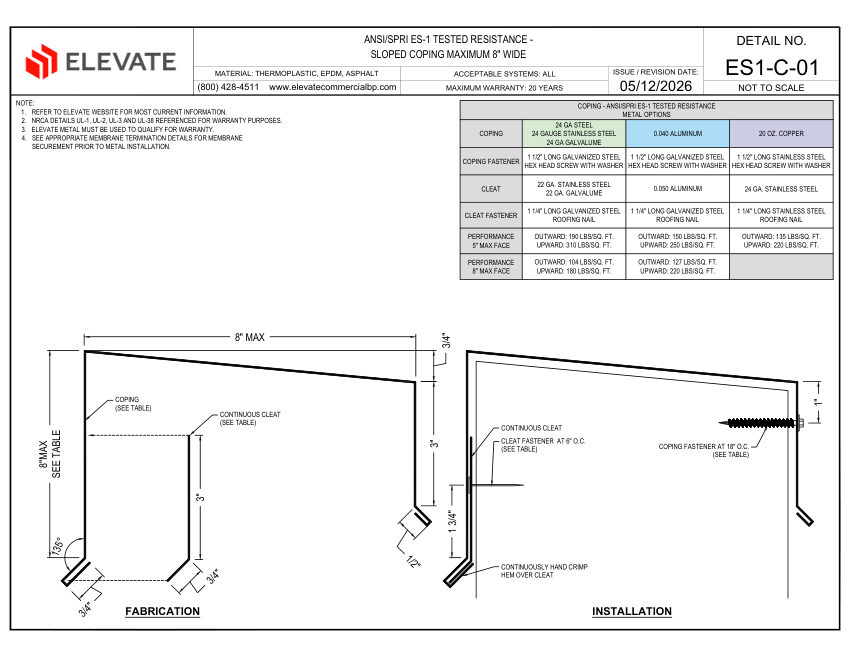

Elevate ES1-C-01 - SLOPED COPING MAXIMUM 8" WIDE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
ES1-C-01 - SLOPED COPING MAXIMUM 8" WIDE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberES1-C-01 - SLOPED COPING MAXIMUM 8" WIDE
DescriptionElevate Sloped Coping (Roofing Coping). Model ES1-C-01. Maximum width 8 inches; ANSI/SPRI ES-1 tested resistance; 20-year maximum warranty; Compatible with all acceptable systems. material: Thermoplastic, EPDM, Asphalt, 24 Ga Steel, 24 Ga Stainless Steel, 0.040 Aluminum, 20 Oz Copper, 24 Ga Galvalume, 22 Ga Stainless Steel, 22 Ga Galvalume
Connection sizeMaximum 8" Wide
End connectionCoping Fastener, Cleat Fastener
MountingCleat Fastener at 6" O.C., Coping Fastener at 18" O.C.
Dimensions8" Max Face, 3/4" Thickness, 135° Angle
ComplianceANSI/SPRI ES-1 Tested Resistance.
