ElevateES1-C-03 - SLOPED COPING WITH RAISED CLEAT MAXIMUM 12" WIDE

Elevate Sloped Coping with Raised Cleat (Roofing Coping). Model ES1-C-03. Maximum width 12 inches; ANSI/SPRI ES-1 tested resistance; 20-year maximum warranty; Outward wind resistance up to 214 lbs/sq. ft.. material: Thermoplastic, EPDM, Asphalt, 24 GA Steel, 24 Gauge Stainless Steel, 0.040 Aluminum, 24 GA Galvalume, 22 GA. Stainless Steel, 0.050 Aluminum, 22 GA. Galvalume

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFES1-C-03---SLOPED-COPING-WITH-RAISED-CLEAT-MAXIMUM-12-WIDE.pdfData sheet

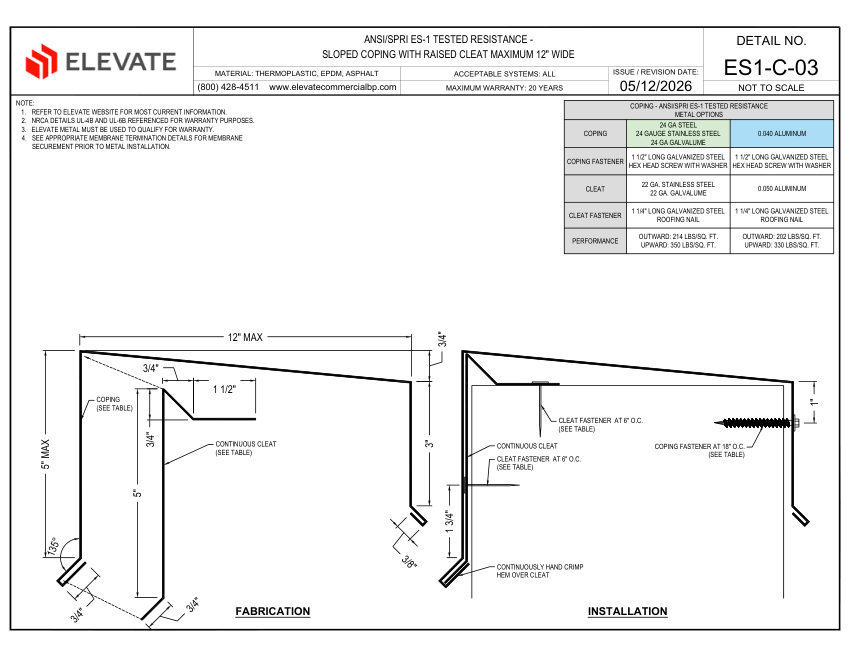

Elevate ES1-C-03 - SLOPED COPING WITH RAISED CLEAT MAXIMUM 12" WIDE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
ES1-C-03 - SLOPED COPING WITH RAISED CLEAT MAXIMUM 12" WIDE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberES1-C-03 - SLOPED COPING WITH RAISED CLEAT MAXIMUM 12" WIDE
DescriptionElevate Sloped Coping with Raised Cleat (Roofing Coping). Model ES1-C-03. Maximum width 12 inches; ANSI/SPRI ES-1 tested resistance; 20-year maximum warranty; Outward wind resistance up to 214 lbs/sq. ft.. material: Thermoplastic, EPDM, Asphalt, 24 GA Steel, 24 Gauge Stainless Steel, 0.040 Aluminum, 24 GA Galvalume, 22 GA. Stainless Steel, 0.050 Aluminum, 22 GA. Galvalume
Connection sizeMaximum 12" Wide
End connectionHex Head Screw with Washer, Roofing Nail
MountingCoping Fastener at 18" O.C., Cleat Fastener at 6" O.C.
Dimensions12" Max Width, 3/4" Thickness, 1 1/2" Cleat Height, 135
