ElevateES1-C-05 - SLOPED COPING FRONT AND BACK MOUNTED CLEAT MAXIMU

Elevate Sloped Coping (Roofing Coping). Model ES1-C-05. ANSI/SPRI ES-1 Tested Resistance; Maximum 20 Years Warranty

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFES1-C-05---SLOPED-COPING-FRONT-AND-BACK-MOUNTED-CLEAT-MAXIMU.pdfData sheet

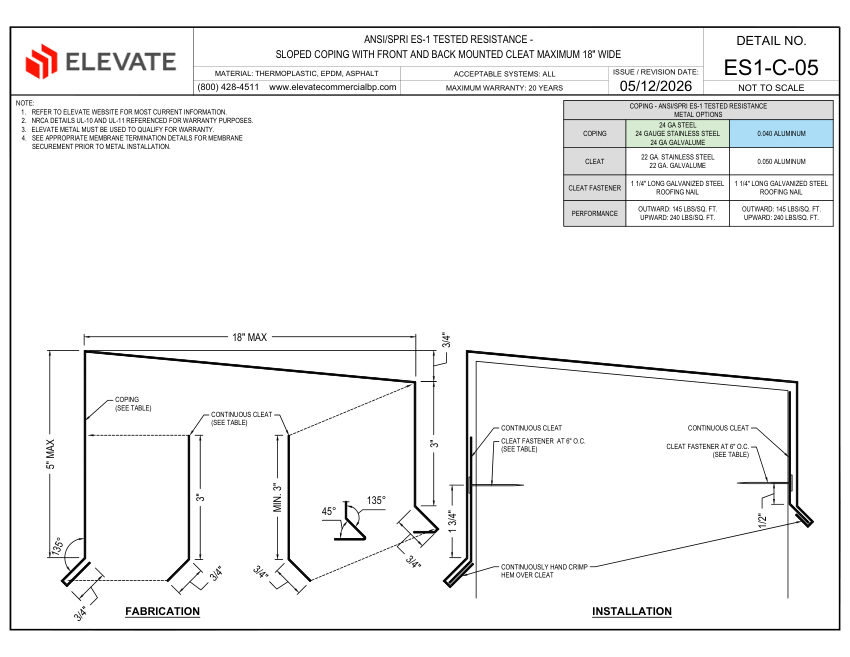

Elevate ES1-C-05 - SLOPED COPING FRONT AND BACK MOUNTED CLEAT MAXIMU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
ES1-C-05 - SLOPED COPING FRONT AND BACK MOUNTED CLEAT MAXIMU
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberES1-C-05 - SLOPED COPING FRONT AND BACK MOUNTED CLEAT MAXIMU
DescriptionElevate Sloped Coping (Roofing Coping). Model ES1-C-05. ANSI/SPRI ES-1 Tested Resistance; Maximum 20 Years Warranty
Outward Performance145 lbs/sq. ft.
Upward Performance240 lbs/sq. ft.. material: Thermoplastic, EPDM, Asphalt, 24 GA Steel, 24 GA Stainless Steel, 0.040 Aluminum, 24 GA Galvalume, 22 GA Stainless Steel, 0.050 Aluminum, 22 GA Galvalume
Connection sizeMaximum 18" Wide
End connectionFront and Back Mounted Cleat
MountingCleat Fastener at 6" O.C.
Dimensions3/4" Height, 5" Max Slope, 135° Angle
ComplianceANSI/SPRI ES-1 Tested Resistance.
