ElevateES1-C-08 - SLOPED COPING FRONT MOUNTED CLEAT MAXIMUM 24" WID

Elevate Sloped Coping with Front Mounted Cleat (Roofing Coping). Model ES1-C-08. ANSI/SPRI ES-1 Tested Resistance; Maximum width 24 inches

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFES1-C-08---SLOPED-COPING-FRONT-MOUNTED-CLEAT-MAXIMUM-24-WID.pdfData sheet

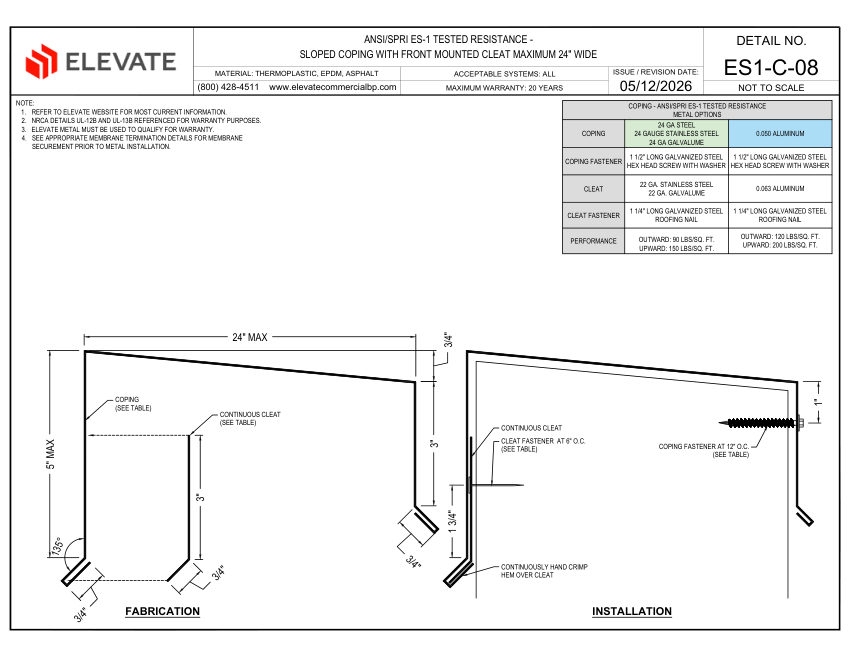

Elevate ES1-C-08 - SLOPED COPING FRONT MOUNTED CLEAT MAXIMUM 24" WID cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
ES1-C-08 - SLOPED COPING FRONT MOUNTED CLEAT MAXIMUM 24" WID
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberES1-C-08 - SLOPED COPING FRONT MOUNTED CLEAT MAXIMUM 24" WID
DescriptionElevate Sloped Coping with Front Mounted Cleat (Roofing Coping). Model ES1-C-08. ANSI/SPRI ES-1 Tested Resistance; Maximum width 24 inches
Outward wind resistance90-120 lbs/sq. ft.
Upward wind resistance150-200 lbs/sq. ft.. material: Thermoplastic, EPDM, Asphalt (Membrane); 24 Ga Steel, 24 Ga Stainless Steel, 0.050 Aluminum, 24 Ga Galvalume (Coping); 22 Ga Stainless Steel, 0.063 Aluminum, 22 Ga Galvalume (Cleat)
Connection sizeMaximum 24" Wide
End connectionFront Mounted Cleat
MountingCoping Fastener at 12" O.C.; Cleat Fastener at 6" O.C.
Dimensions3/4" Coping Height; 3" Cleat
