ElevateES1-F-01 - DRIP EDGE FASCIA MAXIMUM 8" HEIGHT

Elevate Drip Edge Fascia (Roofing Metal). Model ES1-F-01. Maximum height 8 inches; ANSI/SPRI ES-1 tested resistance; Available in Steel, Stainless Steel, Aluminum, and Galvalume; Performance rating 210 lbs/sq ft for 8" max face. material: 24 GA STEEL, 24 GAUGE STAINLESS STEEL, 0.040 ALUMINUM, 0.063 ALUMINUM, 24 GA GALVALUME, 22 GA. STEEL, 22 GA. STAINLESS STEEL, 0.050 ALUMINUM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFES1-F-01---DRIP-EDGE-FASCIA-MAXIMUM-8-HEIGHT.pdfData sheet

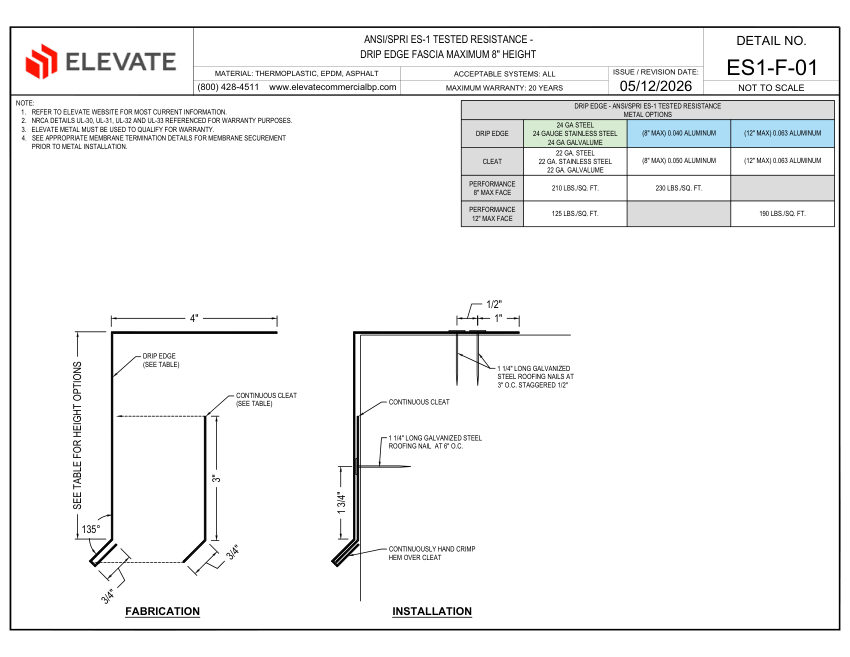

Elevate ES1-F-01 - DRIP EDGE FASCIA MAXIMUM 8" HEIGHT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
ES1-F-01 - DRIP EDGE FASCIA MAXIMUM 8" HEIGHT
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberES1-F-01 - DRIP EDGE FASCIA MAXIMUM 8" HEIGHT
DescriptionElevate Drip Edge Fascia (Roofing Metal). Model ES1-F-01. Maximum height 8 inches; ANSI/SPRI ES-1 tested resistance; Available in Steel, Stainless Steel, Aluminum, and Galvalume; Performance rating 210 lbs/sq ft for 8" max face. material: 24 GA STEEL, 24 GAUGE STAINLESS STEEL, 0.040 ALUMINUM, 0.063 ALUMINUM, 24 GA GALVALUME, 22 GA. STEEL, 22 GA. STAINLESS STEEL, 0.050 ALUMINUM
Mounting1 1/4" LONG GALVANIZED STEEL ROOFING NAILS AT 3" O.C. STAGGERED 1/2" OR 6" O.C.
DimensionsMAXIMUM 8" HEIGHT, 135° ANGLE, 3/4" FLANGE
ComplianceANSI/SPRI ES-1 TESTED RESISTANCE.
