DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateES1-F-04 - RAISED EDGE FASCIA WITH METAL CANT MAXIMUM 8" HEI

Elevate Raised Edge Fascia (Roofing). Model ES1-F-04. Maximum height of 8 inches; ANSI/SPRI ES-1 tested resistance; 20-year maximum warranty; Compatible with thermoplastic, EPDM, and asphalt membranes. material: Thermoplastic, EPDM, Asphalt; 24 GA Steel, 24 GA Stainless Steel, 0.040 Aluminum, 24 GA Galvalume, 22 GA Steel, 22 GA Stainless Steel, 0.050 Aluminum, 22 GA Galvalume

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFES1-F-04---RAISED-EDGE-FASCIA-WITH-METAL-CANT-MAXIMUM-8-HEI.pdfData sheet

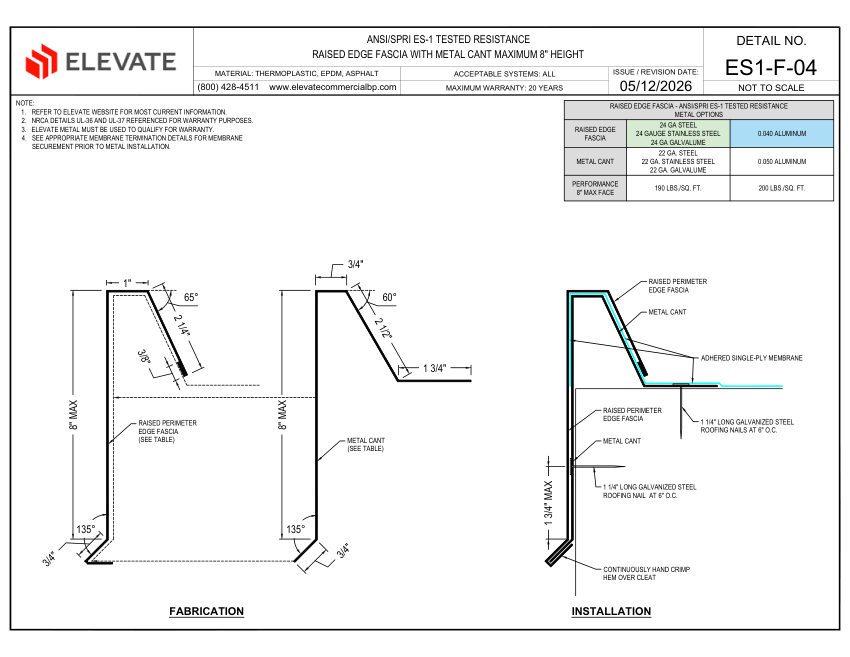

Elevate ES1-F-04 - RAISED EDGE FASCIA WITH METAL CANT MAXIMUM 8" HEI cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
ES1-F-04 - RAISED EDGE FASCIA WITH METAL CANT MAXIMUM 8" HEI
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberES1-F-04 - RAISED EDGE FASCIA WITH METAL CANT MAXIMUM 8" HEI
DescriptionElevate Raised Edge Fascia (Roofing). Model ES1-F-04. Maximum height of 8 inches; ANSI/SPRI ES-1 tested resistance; 20-year maximum warranty; Compatible with thermoplastic, EPDM, and asphalt membranes. material: Thermoplastic, EPDM, Asphalt; 24 GA Steel, 24 GA Stainless Steel, 0.040 Aluminum, 24 GA Galvalume, 22 GA Steel, 22 GA Stainless Steel, 0.050 Aluminum, 22 GA Galvalume
End connectionAdhered single-ply membrane; 1 1/4" long galvanized steel roofing nails at 6" O.C.; Continuous hand crimp hem over cleat
MountingMetal cant
DimensionsMaximum 8" height; 8" max face; 3/4" to 1" thickn
