DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateEW-RE-14A - RUBBERGARD ECOWHITE EPDM ROOF EDGE WITH UNA-EDGE

Elevate EPDM Roof Edge with Drip Edge (Roofing). Model EW-RE-14A. Requires 12" (304.8 mm) EcoWhite Quickseam Flashing extending to within 1/4" of metal edge; EcoWhite Lap Sealant required along upslope edge if roof slope is 1" per foot or greater; Includes 6" wide concealed splice plates which must be field caulked; Metal flange must be fully supported by wood nailer and terminated at least 1/2" from edge. material: Rubbergard EcoWhite EPDM, 22 Ga. Galvanized Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFEW-RE-14A---RUBBERGARD-ECOWHITE-EPDM-ROOF-EDGE-WITH-UNA-EDGE.pdfData sheet

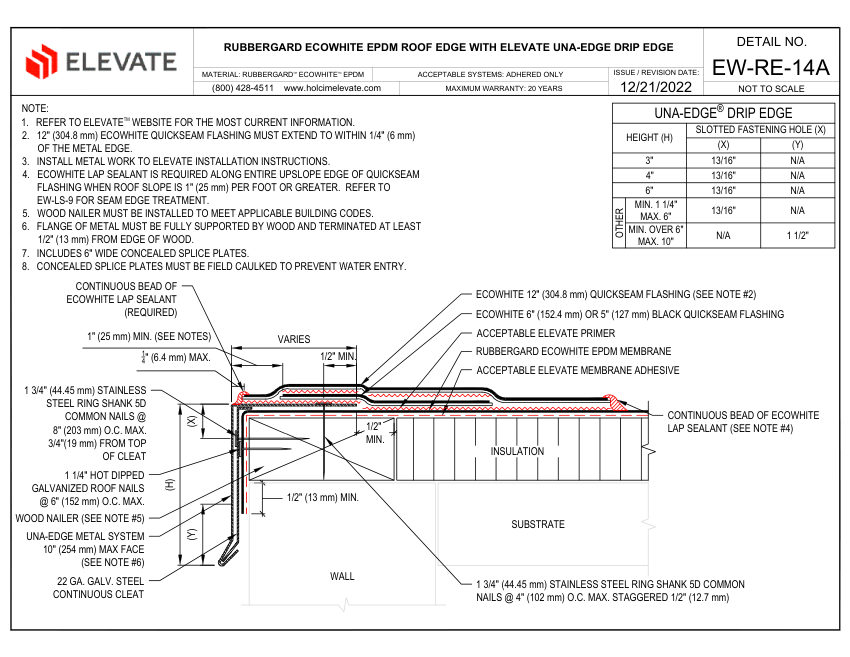

Elevate EW-RE-14A - RUBBERGARD ECOWHITE EPDM ROOF EDGE WITH UNA-EDGE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
EW-RE-14A - RUBBERGARD ECOWHITE EPDM ROOF EDGE WITH UNA-EDGE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberEW-RE-14A - RUBBERGARD ECOWHITE EPDM ROOF EDGE WITH UNA-EDGE
DescriptionElevate EPDM Roof Edge with Drip Edge (Roofing). Model EW-RE-14A. Requires 12" (304.8 mm) EcoWhite Quickseam Flashing extending to within 1/4" of metal edge; EcoWhite Lap Sealant required along upslope edge if roof slope is 1" per foot or greater; Includes 6" wide concealed splice plates which must be field caulked; Metal flange must be fully supported by wood nailer and terminated at least 1/2" from edge. material: Rubbergard EcoWhite EPDM, 22 Ga. Galvanized Steel
Connection size12" (304.8 mm) Quickseam Flashing
End connectionAdhered Only
FinishEcoWhite
MountingStainless Steel Ring
