ElevateFS-DL-09 - FLASHING AT INSULATED CURB WITH QUICKSEAM RPF WIT

Elevate Flashing Detail (Roofing & Waterproofing). Model FS-DL-09. Detail No. FS-DL-09; Compatible with Sunwave Prismatic Skylight; Includes Quickseam RPF Strip; Fasteners at 12" (305 mm) O.C. Max. material: Extruded Aluminum, Vinyl, Stainless Steel, Galvanized Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFS-DL-09---FLASHING-AT-INSULATED-CURB-WITH-QUICKSEAM-RPF-WIT.pdfData sheet

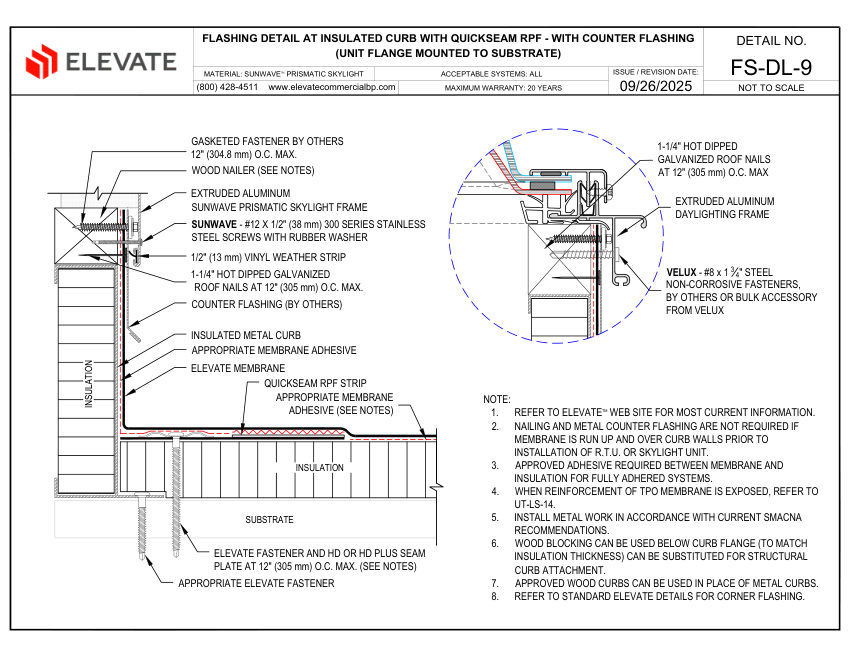

Elevate FS-DL-09 - FLASHING AT INSULATED CURB WITH QUICKSEAM RPF WIT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
FS-DL-09 - FLASHING AT INSULATED CURB WITH QUICKSEAM RPF WIT
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFS-DL-09 - FLASHING AT INSULATED CURB WITH QUICKSEAM RPF WIT
DescriptionElevate Flashing Detail (Roofing & Waterproofing). Model FS-DL-09. Detail No. FS-DL-09; Compatible with Sunwave Prismatic Skylight; Includes Quickseam RPF Strip; Fasteners at 12" (305 mm) O.C. Max. material: Extruded Aluminum, Vinyl, Stainless Steel, Galvanized Steel
Connection size12" (305 mm) O.C. Max
End connectionGasketed Fastener, Hot Dipped Galvanized Roof Nails, Stainless Steel Screws
FinishHot Dipped Galvanized, 300 Series Stainless Steel
MountingUnit Flange Mounted to Substrate
Dimensions1-1/4" (32 mm) Nails, 1/2" (13 mm) Weather Strip.
