ElevateFS-DL-11 - FLASHING AT NON-INSULATED CURB (UNIT FLANGE MOUNT

Elevate Flashing Detail (Skylight). Model FS-DL-11. Detail for non-insulated curb with unit flange mounted to substrate; Compatible with Sunwave Prismatic Skylight and Velux systems; Requires 1-1/4" hot dipped galvanized roof nails at 12" O.C. max; Uses #12 x 1/2" 300 series stainless steel screws with rubber washers. material: Extruded Aluminum, Hot Dipped Galvanized Steel, 300 Series Stainless Steel, Vinyl

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFS-DL-11---FLASHING-AT-NON-INSULATED-CURB-UNIT-FLANGE-MOUNT.pdfData sheet

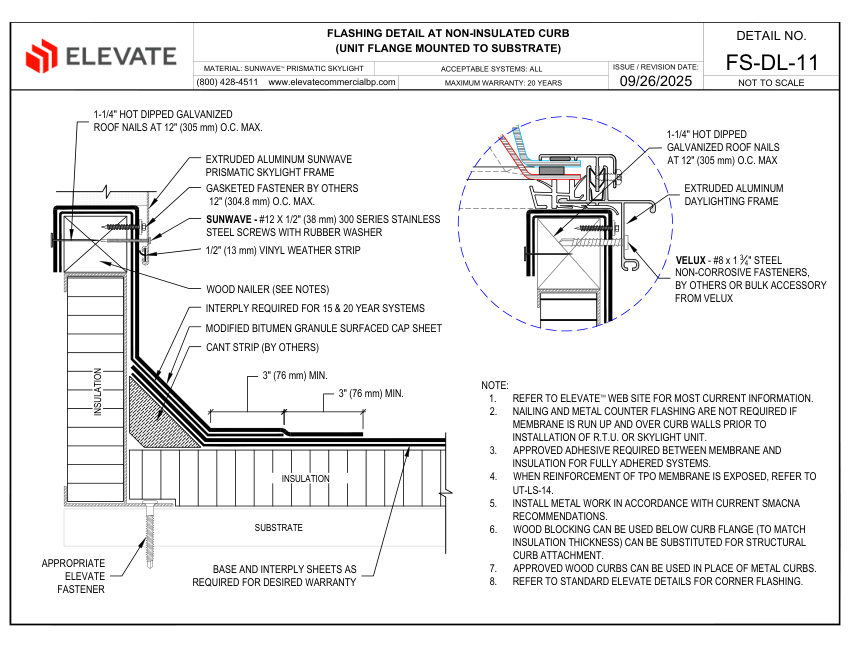

Elevate FS-DL-11 - FLASHING AT NON-INSULATED CURB (UNIT FLANGE MOUNT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
FS-DL-11 - FLASHING AT NON-INSULATED CURB (UNIT FLANGE MOUNT
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFS-DL-11 - FLASHING AT NON-INSULATED CURB (UNIT FLANGE MOUNT
DescriptionElevate Flashing Detail (Skylight). Model FS-DL-11. Detail for non-insulated curb with unit flange mounted to substrate; Compatible with Sunwave Prismatic Skylight and Velux systems; Requires 1-1/4" hot dipped galvanized roof nails at 12" O.C. max; Uses #12 x 1/2" 300 series stainless steel screws with rubber washers. material: Extruded Aluminum, Hot Dipped Galvanized Steel, 300 Series Stainless Steel, Vinyl
Connection size1-1/4" Roof Nails, #12 x 1/2" Screws
End connectionGasketed Fastener, Rubber Washer
FinishHot Dipped Galvanized, Prismatic
MountingUnit Flange Mounted to Substrate
