ElevateFS-DL-16 - SKYLIGHT SUPPORT OVER DECKING SKYLIGHT SMALLER TH

Elevate Skylight Support Over Decking (Skylight Support). Model FS-DL-16. Designed for skylights smaller than joist spacing; Compatible with Sunwave Prismatic Skylight; Curb fastened to channel with 5/8" dia. puddle welds @ 12" O.C.; Channel length calculated as joist spacing plus 6 inches. material: 14 Ga. C6 Channel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFFS-DL-16---SKYLIGHT-SUPPORT-OVER-DECKING-SKYLIGHT-SMALLER-TH.pdfData sheet

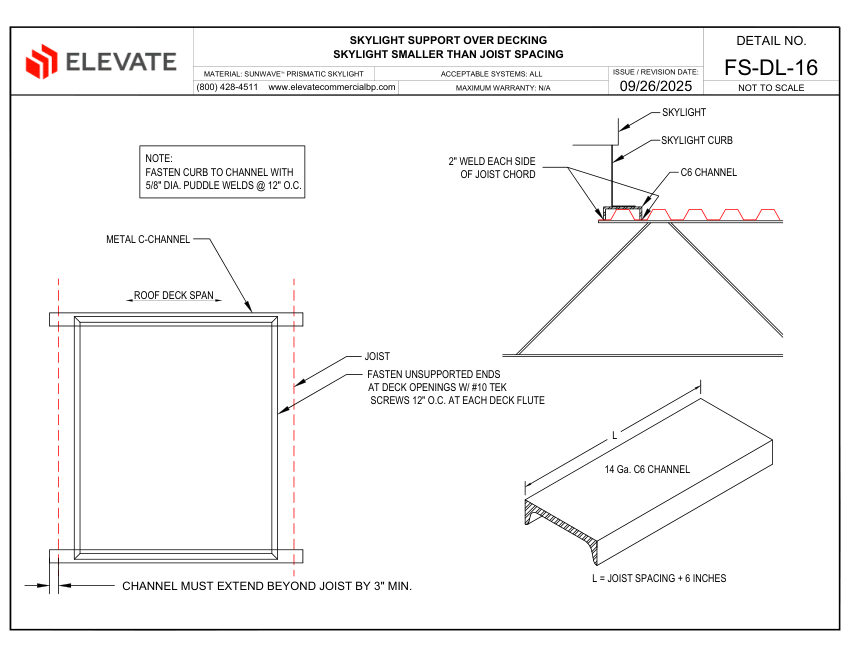

Elevate FS-DL-16 - SKYLIGHT SUPPORT OVER DECKING SKYLIGHT SMALLER TH cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
FS-DL-16 - SKYLIGHT SUPPORT OVER DECKING SKYLIGHT SMALLER TH
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberFS-DL-16 - SKYLIGHT SUPPORT OVER DECKING SKYLIGHT SMALLER TH
DescriptionElevate Skylight Support Over Decking (Skylight Support). Model FS-DL-16. Designed for skylights smaller than joist spacing; Compatible with Sunwave Prismatic Skylight; Curb fastened to channel with 5/8" dia. puddle welds @ 12" O.C.; Channel length calculated as joist spacing plus 6 inches. material: 14 Ga. C6 Channel
Connection size5/8" Dia. Puddle Welds
End connection2" Weld Each Side of Joist Chord
MountingFasten unsupported ends at deck openings w/ #10 Tek Screws 12" O.C. at each deck flute
DimensionsL = Joist Spacing + 6 Inches; Channel must extend beyond joist by 3" min.
