DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateLAYOUT TPM-120-4-12 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYO

Elevate Thermoplastic Membrane Attachment Layout (Roofing). Model TPM-120-4-12. Applies to 120" (3.1 m) thermoplastic membrane panels; Designed for roof heights between 61' (18.59 m) and 120' (36.57 m); Requires fastener pullout values of 400 LB (181.4 kN) or greater; Fastener spacing is 12" o.c. (304.8 mm) using HD or HD Plus plates. material: ULTRAPLY TPO, ELEVATE PVC KEE, ELEVATE MAX PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLAYOUT-TPM-120-4-12---THERMOPLASTIC-MEMBRANE-ATTACHMENT-LAYO.pdfData sheet

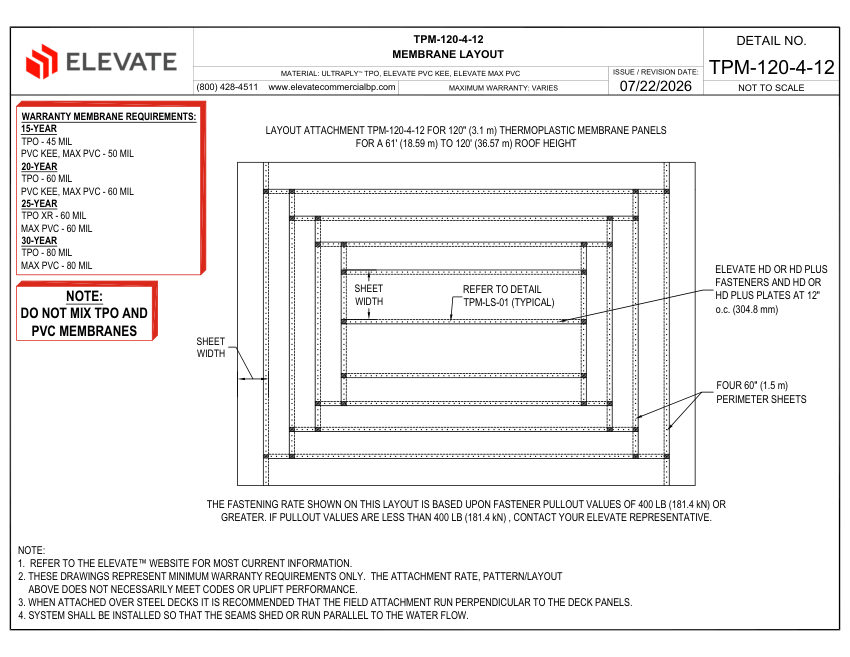

Elevate LAYOUT TPM-120-4-12 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYO cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
LAYOUT TPM-120-4-12 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYO
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLAYOUT TPM-120-4-12 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYO
DescriptionElevate Thermoplastic Membrane Attachment Layout (Roofing). Model TPM-120-4-12. Applies to 120" (3.1 m) thermoplastic membrane panels; Designed for roof heights between 61' (18.59 m) and 120' (36.57 m); Requires fastener pullout values of 400 LB (181.4 kN) or greater; Fastener spacing is 12" o.c. (304.8 mm) using HD or HD Plus plates. material: ULTRAPLY TPO, ELEVATE PVC KEE, ELEVATE MAX PVC
Connection size120" (3.1 m) membrane panels
End connectionELEVATE HD or HD Plus fasteners and plates
MountingPicture frame method, fasteners at 12" o.c. (304.8 mm)
DimensionsRoof height 61' (18.59
