DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateLAYOUT TPM-96-1-06 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYO

Elevate Thermoplastic Membrane Attachment Layout (Roofing Membrane). Model TPM-96-1-06. Fastener spacing at 6" (152.4 mm) O.C.; Requires fastener pullout values of 400 LB (181.4 kN) or greater; One 60" (1.5 m) perimeter sheet required; Do not mix TPO and PVC membranes. material: ULTRAPLY TPO, ELEVATE PVC KEE, ELEVATE MAX PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLAYOUT-TPM-96-1-06---THERMOPLASTIC-MEMBRANE-ATTACHMENT-LAYO.pdfData sheet

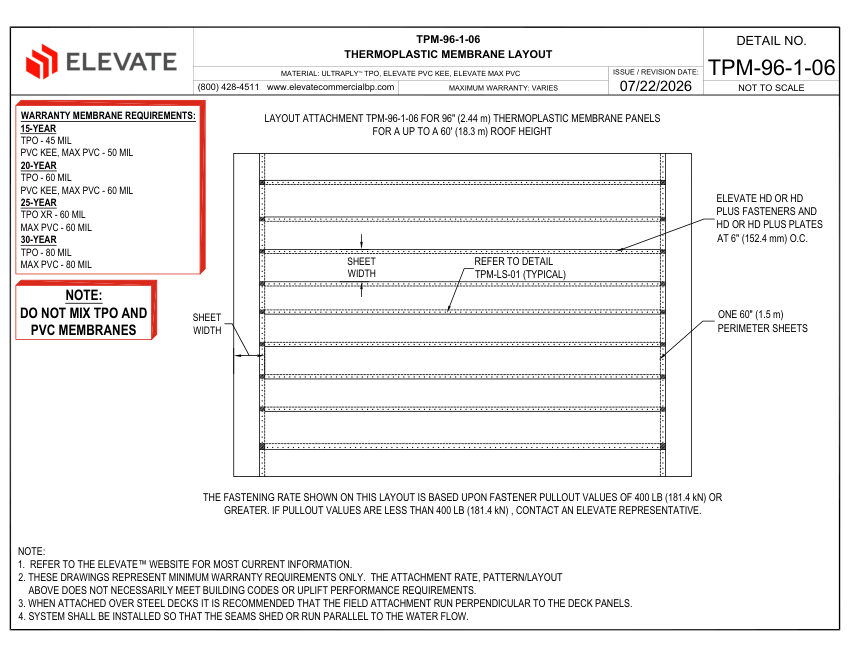

Elevate LAYOUT TPM-96-1-06 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYO cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
LAYOUT TPM-96-1-06 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYO
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLAYOUT TPM-96-1-06 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYO
DescriptionElevate Thermoplastic Membrane Attachment Layout (Roofing Membrane). Model TPM-96-1-06. Fastener spacing at 6" (152.4 mm) O.C.; Requires fastener pullout values of 400 LB (181.4 kN) or greater; One 60" (1.5 m) perimeter sheet required; Do not mix TPO and PVC membranes. material: ULTRAPLY TPO, ELEVATE PVC KEE, ELEVATE MAX PVC
Connection size96" (2.44 m) panels
End connectionELEVATE HD OR HD PLUS FASTENERS AND HD OR HD PLUS PLATES
MountingPicture Frame Method
DimensionsUp to 60' (18.3 m) roof height
ComplianceMinimum warranty requirements only.
