Elevate Thermoplastic Membrane Attachment Layout (Roofing). Model TPM-96-1-12. Fastener spacing at 12" oc (304.8 mm); Includes one 60" (1.5 m) perimeter sheet; Based on fastener pullout values of 400 LB (181.4 kN) or greater; Do not mix TPO and PVC membranes. material: ULTRAPLY TPO, ELEVATE PVC KEE, ELEVATE MAX PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLAYOUT-TPM-96-1-12---THERMOPLASTIC-MEMBRANE-ATTACHMENT-LAYOU.pdfData sheet

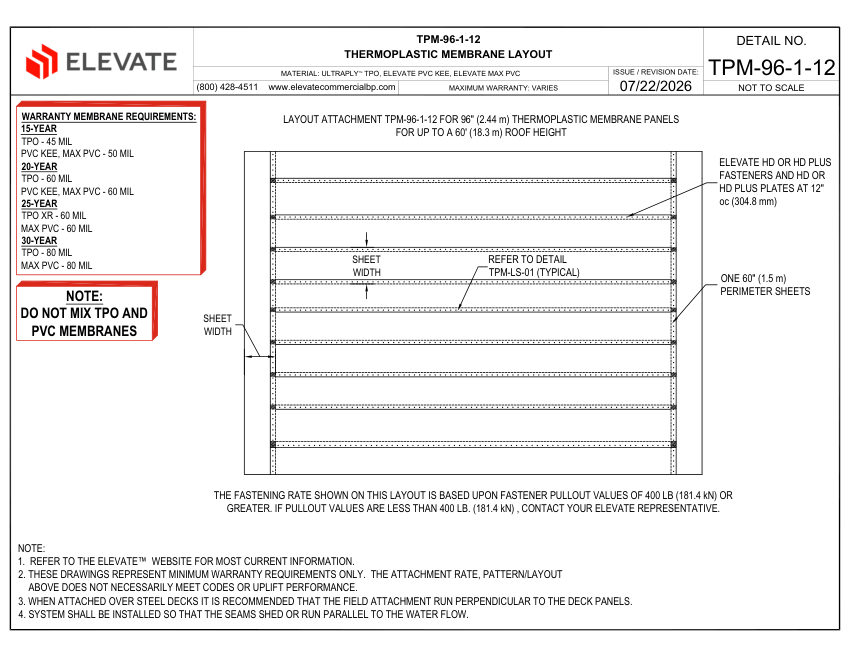

Elevate LAYOUT TPM-96-1-12 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYOU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
LAYOUT TPM-96-1-12 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYOU
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLAYOUT TPM-96-1-12 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYOU
DescriptionElevate Thermoplastic Membrane Attachment Layout (Roofing). Model TPM-96-1-12. Fastener spacing at 12" oc (304.8 mm); Includes one 60" (1.5 m) perimeter sheet; Based on fastener pullout values of 400 LB (181.4 kN) or greater; Do not mix TPO and PVC membranes. material: ULTRAPLY TPO, ELEVATE PVC KEE, ELEVATE MAX PVC
Connection size96" (2.44 m) panels
End connectionHD or HD Plus fasteners and plates
MountingPicture Frame Method
Dimensions96" (2.44 m) sheet width; up to 60' (18.3 m) roof height
ComplianceMinimum warranty requirements only; not necessarily code/uplift compliant.
