DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateLAYOUT TPM-96-2-12 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYOU

Elevate Thermoplastic Membrane Attachment Layout (Roofing Membrane). Model TPM-96-2-12. Applies to 96" (2.44 m) thermoplastic membrane panels; Designed for roof heights between 61' (18.59 m) and 120' (36.57 m); Fastener pullout values must be 400 LB (181.4 kN) or greater; Do not mix TPO and PVC membranes. material: ULTRAPLY TPO, ELEVATE PVC KEE, ELEVATE MAX PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLAYOUT-TPM-96-2-12---THERMOPLASTIC-MEMBRANE-ATTACHMENT-LAYOU.pdfData sheet

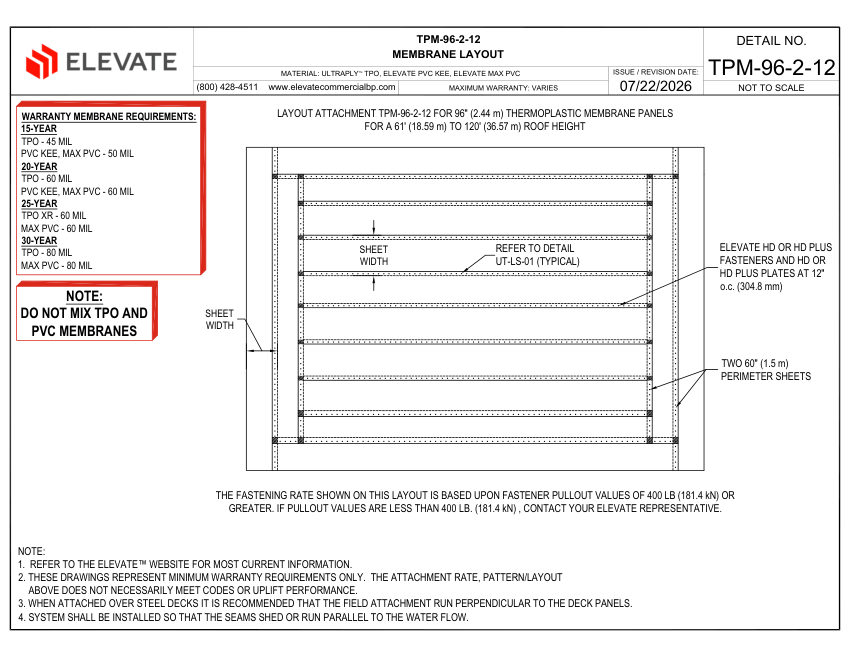

Elevate LAYOUT TPM-96-2-12 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYOU cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
LAYOUT TPM-96-2-12 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYOU
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLAYOUT TPM-96-2-12 - THERMOPLASTIC MEMBRANE ATTACHMENT LAYOU
DescriptionElevate Thermoplastic Membrane Attachment Layout (Roofing Membrane). Model TPM-96-2-12. Applies to 96" (2.44 m) thermoplastic membrane panels; Designed for roof heights between 61' (18.59 m) and 120' (36.57 m); Fastener pullout values must be 400 LB (181.4 kN) or greater; Do not mix TPO and PVC membranes. material: ULTRAPLY TPO, ELEVATE PVC KEE, ELEVATE MAX PVC
Connection size96" (2.44 m) panels
End connectionFasteners and HD or HD Plus plates at 12" o.c. (304.8 mm)
MountingPicture Frame Method
Dimensions61' (18.59 m) to 120' (36.57 m) roof height
ComplianceMinimum warranty requir
