DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateLS-10 - LAP SPLICE WITH 1"METAL BATTEN AND 6" QUICKSEAM SPLI

Elevate Lap Splice Detail (Roofing Detail). Model LS-10. Requires continuous bead of lap sealant at all quickseam edges and laps; End laps of quickseam splice tape must overlap a minimum of 1" (25.4 mm); Metal batten is 1" (25.4 mm) wide and fastened at 12" (304.8 mm) O.C. max; Quickseam splice tape is 6" (152.4 mm) wide and centered over fastener. material: RubberGard EPDM or Max EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLS-10---LAP-SPLICE-WITH-1-METAL-BATTEN-AND-6-QUICKSEAM-SPLI.pdfData sheet

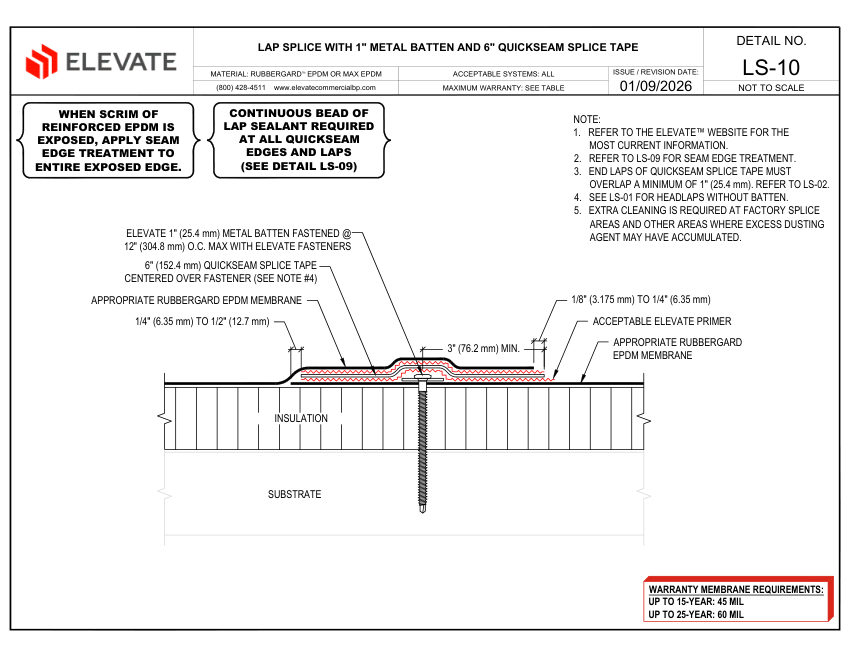

Elevate LS-10 - LAP SPLICE WITH 1"METAL BATTEN AND 6" QUICKSEAM SPLI cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
LS-10 - LAP SPLICE WITH 1"METAL BATTEN AND 6" QUICKSEAM SPLI
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLS-10 - LAP SPLICE WITH 1"METAL BATTEN AND 6" QUICKSEAM SPLI
DescriptionElevate Lap Splice Detail (Roofing Detail). Model LS-10. Requires continuous bead of lap sealant at all quickseam edges and laps; End laps of quickseam splice tape must overlap a minimum of 1" (25.4 mm); Metal batten is 1" (25.4 mm) wide and fastened at 12" (304.8 mm) O.C. max; Quickseam splice tape is 6" (152.4 mm) wide and centered over fastener. material: RubberGard EPDM or Max EPDM
Connection size1" Metal Batten, 6" Quickseam Splice Tape
End connectionLap Splice
MountingFastened @ 12" O.C. Max with Elevate Fasteners
Dimensions1" (25.4 mm) Batten, 6" (152.4 mm) Tape.
