DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateLS-12 - LAP SPLICE WITH ELEVATE V-PLATE AND 6" QUICKSEAM SPL

Elevate Lap Splice Detail (Roofing Detail). Model LS-12. Requires continuous bead of lap sealant at all Quickseam edges and laps; End laps of Quickseam splice tape must overlap a minimum of 1" (25.4 mm); Extra cleaning required at factory splice areas for excess dusting agent; Warranty membrane requirements: 45 mil for up to 15-year, 60 mil for up to 25-year. material: RubberGard EPDM or Max EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFLS-12---LAP-SPLICE-WITH-ELEVATE-V-PLATE-AND-6-QUICKSEAM-SPL.pdfData sheet

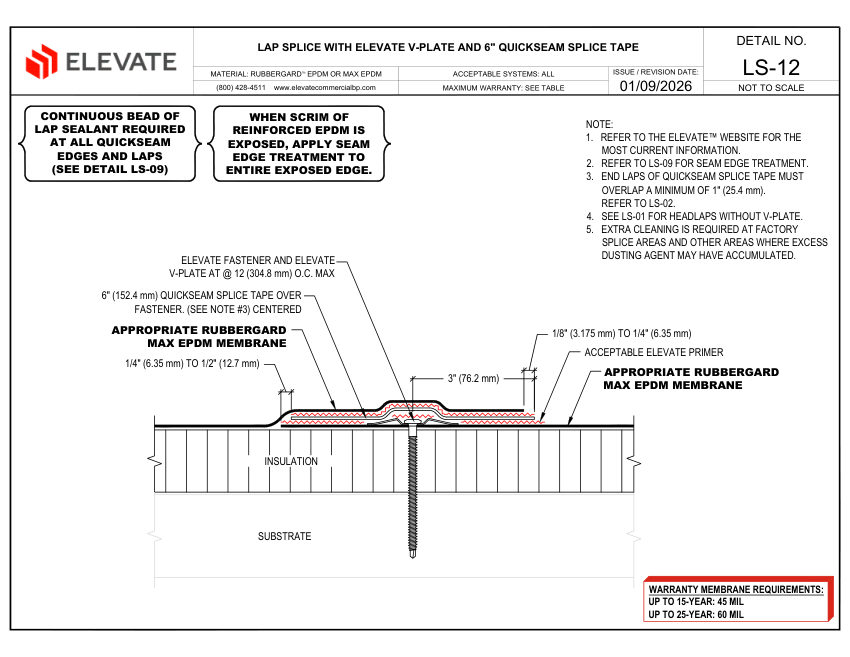

Elevate LS-12 - LAP SPLICE WITH ELEVATE V-PLATE AND 6" QUICKSEAM SPL cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
LS-12 - LAP SPLICE WITH ELEVATE V-PLATE AND 6" QUICKSEAM SPL
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberLS-12 - LAP SPLICE WITH ELEVATE V-PLATE AND 6" QUICKSEAM SPL
DescriptionElevate Lap Splice Detail (Roofing Detail). Model LS-12. Requires continuous bead of lap sealant at all Quickseam edges and laps; End laps of Quickseam splice tape must overlap a minimum of 1" (25.4 mm); Extra cleaning required at factory splice areas for excess dusting agent; Warranty membrane requirements: 45 mil for up to 15-year, 60 mil for up to 25-year. material: RubberGard EPDM or Max EPDM
Connection size6" (152.4 mm) Quickseam Splice Tape
End connectionElevate Fastener and Elevate V-Plate
MountingFasteners @ 12" (304.8 mm) O.C. Max
Dimensions3" (76.2 mm) V-Plate; 1/8" to 1/4"
