DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateMB-BT-19 - ULTRAFLASH BASE FLASHING FOR WALL-SUPPORTED DECK

Elevate Base Flashing for Wall-Supported Deck (Roofing Flashing). Model MB-BT-19. Maximum warranty of 20 years

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFMB-BT-19---ULTRAFLASH-BASE-FLASHING-FOR-WALL-SUPPORTED-DECK.pdfData sheet

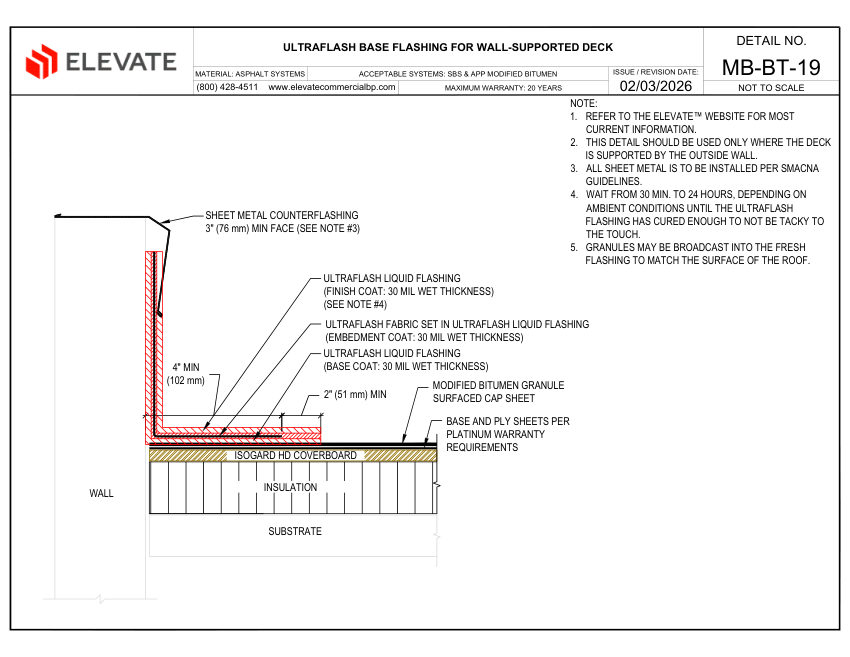

Elevate MB-BT-19 - ULTRAFLASH BASE FLASHING FOR WALL-SUPPORTED DECK cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
MB-BT-19 - ULTRAFLASH BASE FLASHING FOR WALL-SUPPORTED DECK
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberMB-BT-19 - ULTRAFLASH BASE FLASHING FOR WALL-SUPPORTED DECK
DescriptionElevate Base Flashing for Wall-Supported Deck (Roofing Flashing). Model MB-BT-19. Maximum warranty of 20 years
Acceptable systemsSBS & APP Modified Bitumen; Requires 30 minutes to 24 hours cure time depending on ambient conditions; Includes 3 coats of Ultraflash Liquid Flashing (Base, Embedment, Finish). material: Asphalt Systems (SBS & APP Modified Bitumen), Ultraflash Liquid Flashing, Sheet Metal
FinishGranule Surfaced Cap Sheet
MountingWall-Supported Deck
DimensionsSheet Metal Counterflashing 3" (76 mm) min face; Ultraflash Liquid Flashing 30 mil wet thickness per coat; complian
