DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateMB-T-02 - WALL FLASHING AT JOINT ON TILT-UP WALL AT JOINT AND CORNERMB-T-02 - WALL FLASHING AT JOINT ON TILT-UP WALL AT JOINT A

Elevate Wall Flashing Detail (Roofing & Waterproofing). Model MB-T-02. Maximum warranty of 20 years subject to membrane requirements; Requires continuous bead of AP sealant along termination bar edges; Do not use PVC as cover membrane over wall/expansion joint; Contractor responsible for bending termination bar for proper compression. material: MOD-BIT AND BUR

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFMB-T-02---WALL-FLASHING-AT-JOINT-ON-TILT-UP-WALL-AT-JOINT-A.pdfData sheet

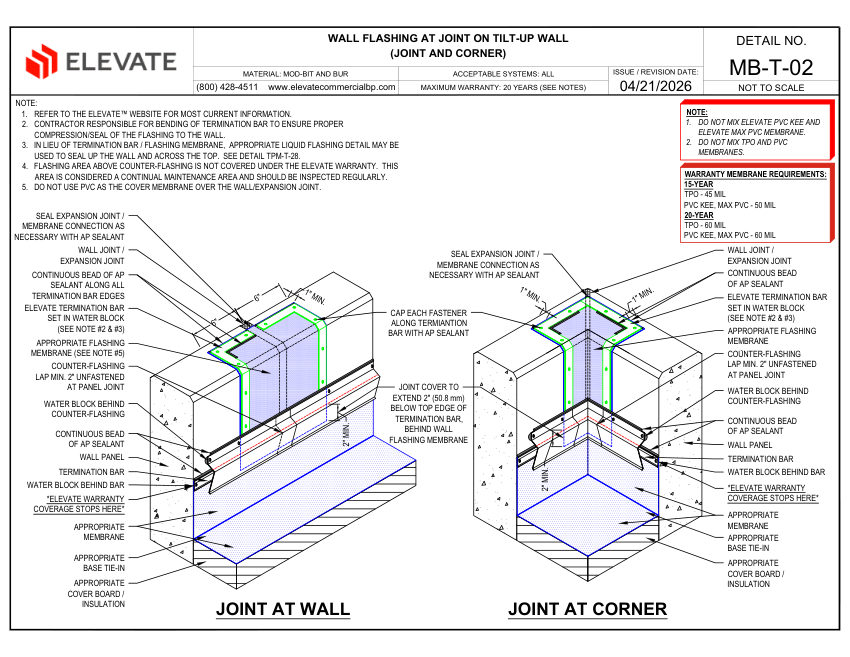

Elevate MB-T-02 - WALL FLASHING AT JOINT ON TILT-UP WALL AT JOINT A cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
MB-T-02 - WALL FLASHING AT JOINT ON TILT-UP WALL AT JOINT A
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberMB-T-02 - WALL FLASHING AT JOINT ON TILT-UP WALL AT JOINT A
DescriptionElevate Wall Flashing Detail (Roofing & Waterproofing). Model MB-T-02. Maximum warranty of 20 years subject to membrane requirements; Requires continuous bead of AP sealant along termination bar edges; Do not use PVC as cover membrane over wall/expansion joint; Contractor responsible for bending termination bar for proper compression. material: MOD-BIT AND BUR
MountingTilt-up wall joint and corner
DimensionsTermination bar set in water block; Counter-flashing lap min 2" unfastened; Joint cover extends 2" below top edge
ComplianceAcceptable Systems: All.
