DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateP-11 - MEMBRANE SECUREMENT AT PENETRATION WITH 2" METAL PLAT

Elevate Membrane Securement at Penetration (Roofing Detail). Model P-11. Detail No. P-11; Uses 2" (50.8 mm) metal plates and Elevate fasteners; Requires appropriate RubberGard EPDM target patch; Minimum 3" (76.2 mm) overlap for splice tape. material: RubberGard EPDM or Max EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFP-11---MEMBRANE-SECUREMENT-AT-PENETRATION-WITH-2-METAL-PLAT.pdfData sheet

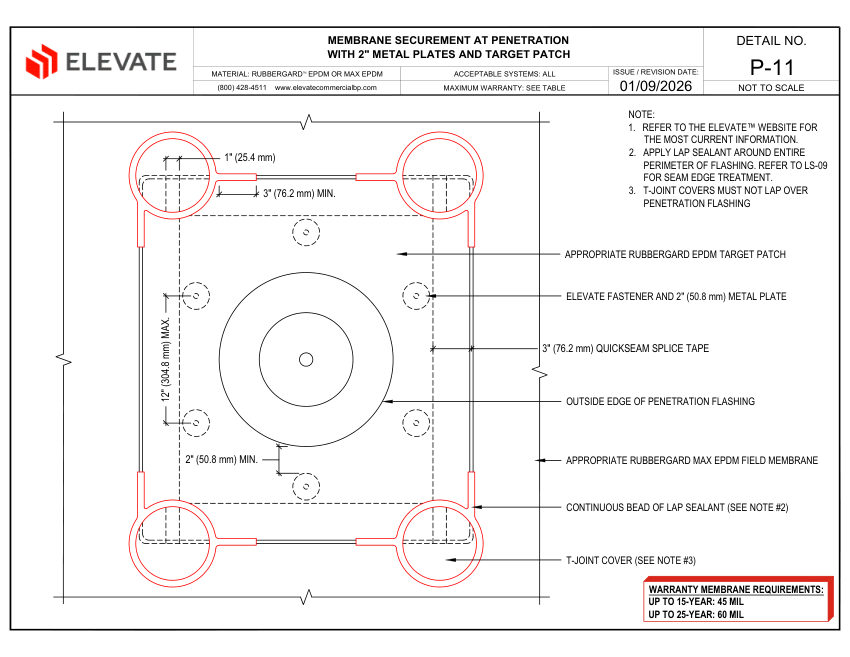

Elevate P-11 - MEMBRANE SECUREMENT AT PENETRATION WITH 2" METAL PLAT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
P-11 - MEMBRANE SECUREMENT AT PENETRATION WITH 2" METAL PLAT
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberP-11 - MEMBRANE SECUREMENT AT PENETRATION WITH 2" METAL PLAT
DescriptionElevate Membrane Securement at Penetration (Roofing Detail). Model P-11. Detail No. P-11; Uses 2" (50.8 mm) metal plates and Elevate fasteners; Requires appropriate RubberGard EPDM target patch; Minimum 3" (76.2 mm) overlap for splice tape. material: RubberGard EPDM or Max EPDM
Connection size2" (50.8 mm) metal plates
End connectionElevate Fastener
MountingFastened with 2" metal plates and target patch
Dimensions1" (25.4 mm) plate thickness, 3" (76.2 mm) min. overlap, 12" (304.8 mm) max. penetration size
ComplianceWarranty: Up to 15-year (45 mil), Up to 25-year (60 mil).
