ElevateP-EW-BT-02 - BASE TIE-IN QUICKSEAM RPF & 2" METAL PLATES FAS

Elevate Base Tie-In (Roofing Detail). Model P-EW-BT-02. Uses 0.090" (2.29 mm) EcoWhite Platinum EPDM membrane; Includes 2" (50.8 mm) metal plates fastened to wall or curb; Quickseam RPF strip must extend 1/2" (12.7 mm) above metal plate; Fasteners spaced at 12" (304.8 mm) O.C. maximum. material: RubberGard EcoWhite Platinum EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFP-EW-BT-02---BASE-TIE-IN-QUICKSEAM-RPF-2-METAL-PLATES-FAS.pdfData sheet

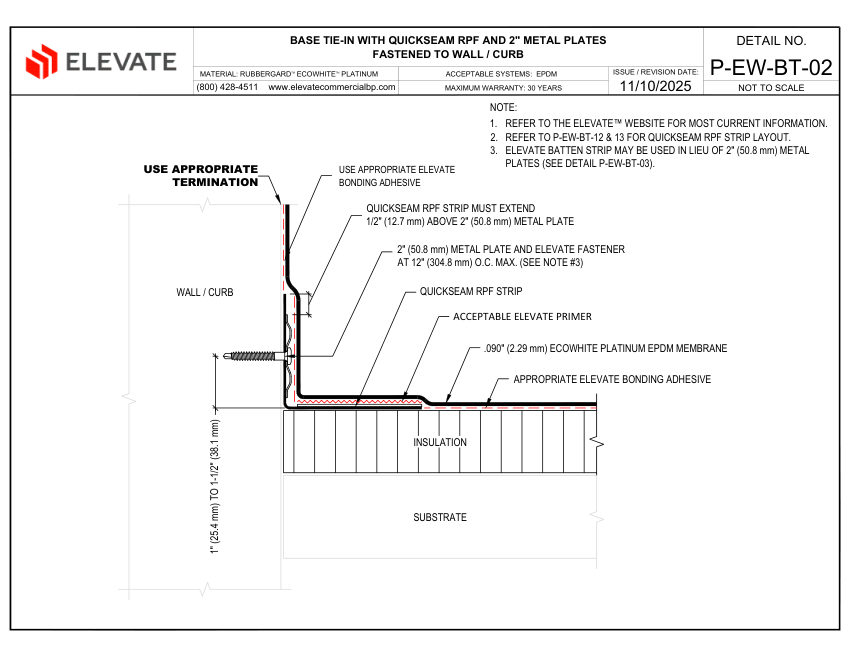

Elevate P-EW-BT-02 - BASE TIE-IN QUICKSEAM RPF & 2" METAL PLATES FAS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
P-EW-BT-02 - BASE TIE-IN QUICKSEAM RPF & 2" METAL PLATES FAS
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberP-EW-BT-02 - BASE TIE-IN QUICKSEAM RPF & 2" METAL PLATES FAS
DescriptionElevate Base Tie-In (Roofing Detail). Model P-EW-BT-02. Uses 0.090" (2.29 mm) EcoWhite Platinum EPDM membrane; Includes 2" (50.8 mm) metal plates fastened to wall or curb; Quickseam RPF strip must extend 1/2" (12.7 mm) above metal plate; Fasteners spaced at 12" (304.8 mm) O.C. maximum. material: RubberGard EcoWhite Platinum EPDM
Connection size2" (50.8 mm) metal plates
End connectionFastened to wall/curb
MountingElevate fastener at 12" (304.8 mm) O.C. max
Dimensions0.090" (2.29 mm) membrane thickness
Compliance30 Years Maximum Warranty.
