DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateP-EW-E-04 EXPANSION JOINT FIELD FABRICATED QUICKSEAM SPLICE

Elevate Field Fabricated Expansion Joint (Roofing Expansion Joint). Model P-EW-E-04. Maximum warranty of 30 years; Compressible tube diameter must exceed deck opening by 50% min or designed movement; Fasteners maximum 10" (254 mm) long; EcoWhite Quickseam Formflash must be warmed to ensure formability. material: RubberGard EcoWhite Platinum EPDM Membrane, 0.090" (2.29 mm)

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFP-EW-E-04-EXPANSION-JOINT-FIELD-FABRICATED-QUICKSEAM-SPLICE.pdfData sheet

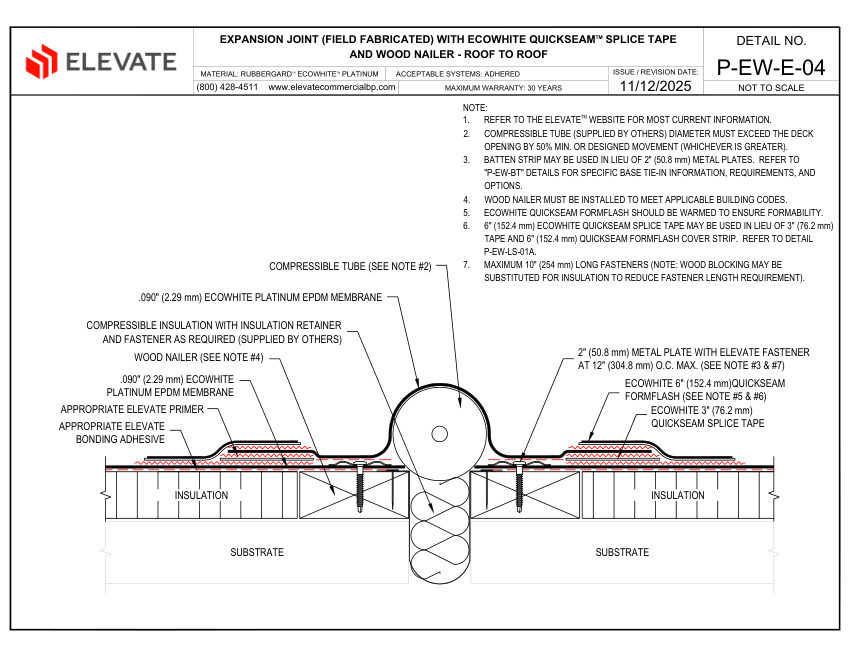

Elevate P-EW-E-04 EXPANSION JOINT FIELD FABRICATED QUICKSEAM SPLICE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
P-EW-E-04 EXPANSION JOINT FIELD FABRICATED QUICKSEAM SPLICE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberP-EW-E-04 EXPANSION JOINT FIELD FABRICATED QUICKSEAM SPLICE
DescriptionElevate Field Fabricated Expansion Joint (Roofing Expansion Joint). Model P-EW-E-04. Maximum warranty of 30 years; Compressible tube diameter must exceed deck opening by 50% min or designed movement; Fasteners maximum 10" (254 mm) long; EcoWhite Quickseam Formflash must be warmed to ensure formability. material: RubberGard EcoWhite Platinum EPDM Membrane, 0.090" (2.29 mm)
End connectionAdhered
FinishEcoWhite
MountingWood Nailer, 2" (50.8 mm) Metal Plate with Elevate Fastener at 12" (304.8 mm) O.C. Max
Dimensions3" (76.2 mm) Quickseam Splice Tape, 6" (152.4 mm) Quickseam Formflash; c
