ElevateP-EW-P-03 - PENETRATION WITH FIELD FABRICATED FLASHING

Elevate Penetration with Field Fabricated Flashing (Roofing Penetration). Model P-EW-P-03. Maximum service line temperature 180 °F (82 °C); Requires continuous bead of EcoWhite Lap Sealant; Pipe surface must be free of rust, grease, and insulation; Additional field membrane securement required for pipe OD > 18" (457.2 mm). material: RubberGard EcoWhite Platinum EPDM Membrane

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFP-EW-P-03---PENETRATION-WITH-FIELD-FABRICATED-FLASHING.pdfData sheet

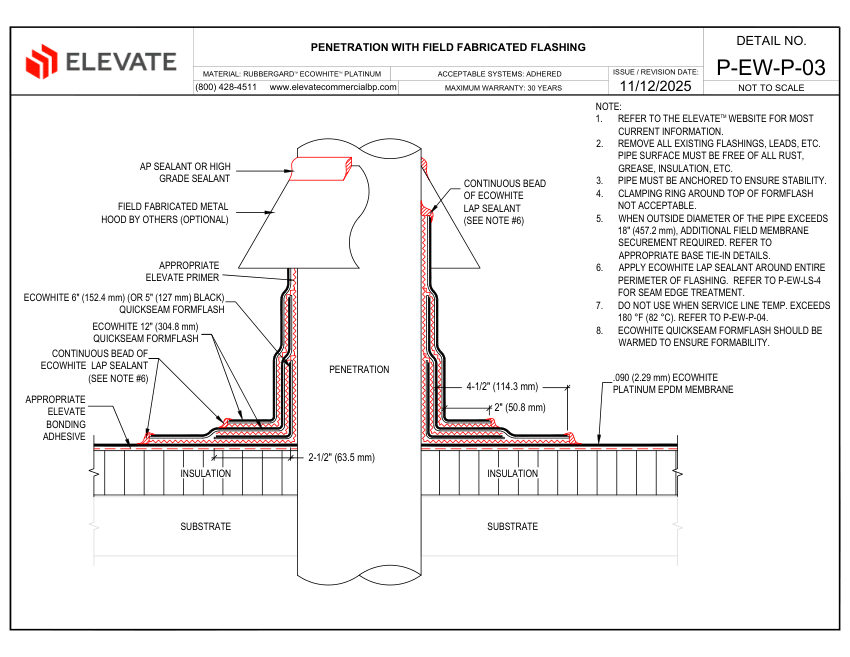

Elevate P-EW-P-03 - PENETRATION WITH FIELD FABRICATED FLASHING cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
P-EW-P-03 - PENETRATION WITH FIELD FABRICATED FLASHING
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberP-EW-P-03 - PENETRATION WITH FIELD FABRICATED FLASHING
DescriptionElevate Penetration with Field Fabricated Flashing (Roofing Penetration). Model P-EW-P-03. Maximum service line temperature 180 °F (82 °C); Requires continuous bead of EcoWhite Lap Sealant; Pipe surface must be free of rust, grease, and insulation; Additional field membrane securement required for pipe OD > 18" (457.2 mm). material: RubberGard EcoWhite Platinum EPDM Membrane
MountingAdhered
Dimensions6" (152.4 mm) or 5" (127 mm) Quickseam Formflash; 12" (304.8 mm) Quickseam Formflash; 4-1/2" (114.3 mm) Penetration
Compliance30 Years Maximum Warranty.
