ElevateP-EW-RE-06B - RUBBERGARD ECOWHITE PLATINUM ROOF EDGE WITH UN

Elevate Roof Edge with Gravel Stop (Roofing Edge). Model P-EW-RE-06B. Includes 6" (152.4 mm) wide concealed splice plates; Requires continuous bead of EcoWhite Lap Sealant; Compatible with fully adhered systems; Maximum warranty of 30 years. material: Rubbergard EcoWhite Platinum EPDM Membrane, 22 Ga. Galv. Steel, Stainless Steel

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFP-EW-RE-06B---RUBBERGARD-ECOWHITE-PLATINUM-ROOF-EDGE-WITH-UN.pdfData sheet

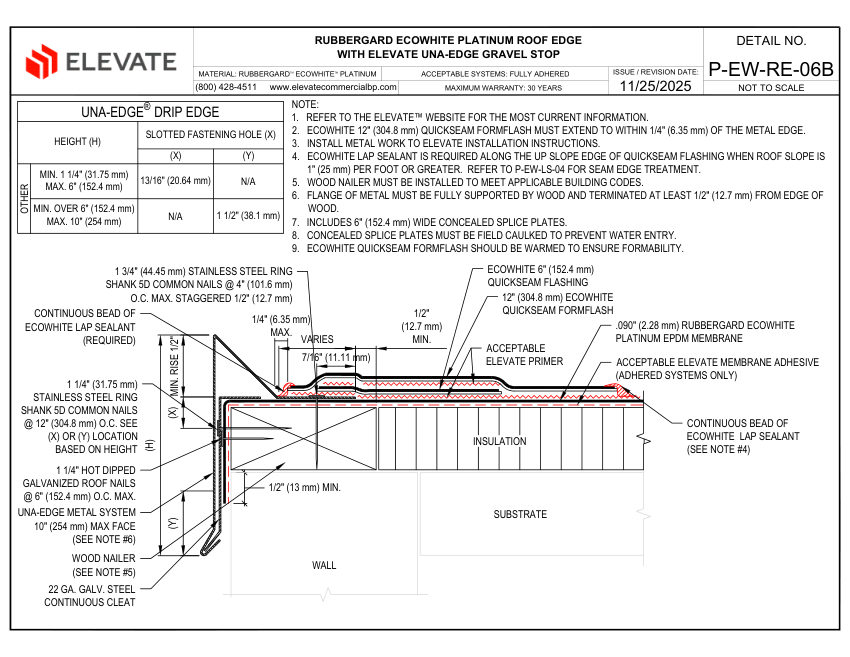

Elevate P-EW-RE-06B - RUBBERGARD ECOWHITE PLATINUM ROOF EDGE WITH UN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
P-EW-RE-06B - RUBBERGARD ECOWHITE PLATINUM ROOF EDGE WITH UN
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberP-EW-RE-06B - RUBBERGARD ECOWHITE PLATINUM ROOF EDGE WITH UN
DescriptionElevate Roof Edge with Gravel Stop (Roofing Edge). Model P-EW-RE-06B. Includes 6" (152.4 mm) wide concealed splice plates; Requires continuous bead of EcoWhite Lap Sealant; Compatible with fully adhered systems; Maximum warranty of 30 years. material: Rubbergard EcoWhite Platinum EPDM Membrane, 22 Ga. Galv. Steel, Stainless Steel
FinishEcoWhite
MountingStainless Steel Ring Shank 5D Common Nails, 1 1/4" Hot Dipped Galvanized Roof Nails
DimensionsHeight Min 1 1/4" (31.75 mm) to Max 10" (254 mm), 12" (304.8 mm) Quickseam Formflash
ComplianceElevate Installation Instructions.
