DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevateP-EW-T-01 - TERMINATION WITH REGLET COUNTER-FLASHING & TERM

Elevate Termination with Reglet Counter-Flashing & Term Bar (Roofing Termination). Model P-EW-T-01. Maximum warranty of 30 years; Requires continuous bead of Elevate AP Sealant or high-grade urethane sealant; Termination bar fastened at 12" (304.8 mm) O.C. max; Water block applied at rate of 10 linear feet per tube. material: RubberGard EcoWhite Platinum, 24 Gauge Pre-Finished Steel or .032" Min. Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFP-EW-T-01---TERMINATION-WITH-REGLET-COUNTER-FLASHING-TERM.pdfData sheet

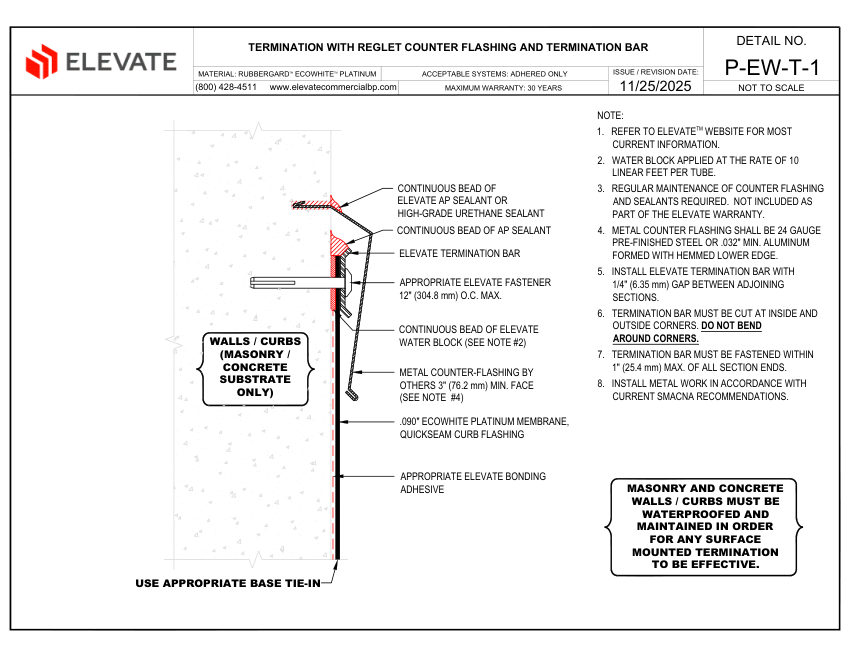

Elevate P-EW-T-01 - TERMINATION WITH REGLET COUNTER-FLASHING & TERM cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
P-EW-T-01 - TERMINATION WITH REGLET COUNTER-FLASHING & TERM
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberP-EW-T-01 - TERMINATION WITH REGLET COUNTER-FLASHING & TERM
DescriptionElevate Termination with Reglet Counter-Flashing & Term Bar (Roofing Termination). Model P-EW-T-01. Maximum warranty of 30 years; Requires continuous bead of Elevate AP Sealant or high-grade urethane sealant; Termination bar fastened at 12" (304.8 mm) O.C. max; Water block applied at rate of 10 linear feet per tube. material: RubberGard EcoWhite Platinum, 24 Gauge Pre-Finished Steel or .032" Min. Aluminum
FinishPre-Finished
MountingAdhered Only
DimensionsMembrane .090", Counter-Flashing 3" (76.2 mm) Min. Face, Termination Bar 1/4" (6.35 mm) Gap
ComplianceSMACNA Recommendations.
