ElevatePE-10 - EXPANSION JOINT (FIELD FABRICATED) QUICKSEAM SPLICE

Elevate Expansion Joint (Roofing Expansion Joint). Model PE-10. Material: RubberGard Platinum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPE-10---EXPANSION-JOINT-FIELD-FABRICATED-QUICKSEAM-SPLICE.pdfData sheet

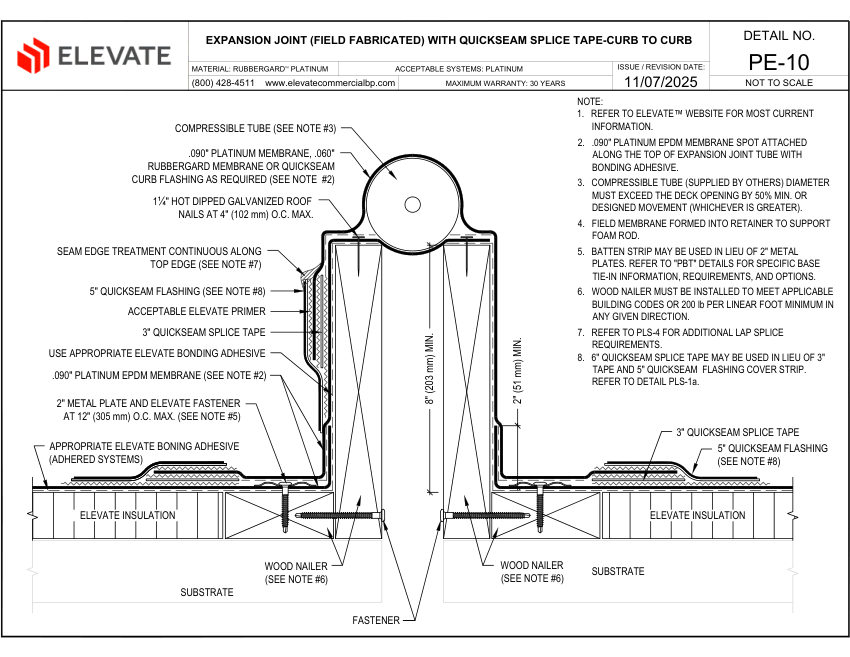

Elevate PE-10 - EXPANSION JOINT (FIELD FABRICATED) QUICKSEAM SPLICE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PE-10 - EXPANSION JOINT (FIELD FABRICATED) QUICKSEAM SPLICE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPE-10 - EXPANSION JOINT (FIELD FABRICATED) QUICKSEAM SPLICE
DescriptionElevate Expansion Joint (Roofing Expansion Joint). Model PE-10. Material: RubberGard Platinum
Membrane.090" Platinum EPDM
Warranty30 Years
Fasteners1¼" Hot Dipped Galvanized Roof Nails at 4" O.C. Max. material: RubberGard Platinum, .090" Platinum EPDM Membrane, .060" RubberGard Membrane, QuickSeam Curb Flashing, 1¼" Hot Dipped Galvanized Roof Nails, 2" Metal Plate, Wood Nailer
Connection sizeCurb to Curb
End connectionQuickSeam Splice Tape, Bonding Adhesive
MountingField Fabricated
Dimensions3" QuickSeam Splice Tape, 5" QuickSeam Flashing, 8" (203 mm) Min. Lap, 2" (51 mm) Mi
