DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePP-4 - PENETRATION HOT STACK FIELD FABRICATED FLASHING

Elevate Hot Stack Penetration Flashing (Roofing Penetration). Model PP-4. Designed for service line temperatures exceeding 180 °F (82 °C); Requires continuous bead of lap sealant around entire perimeter; Includes 0.090" (2.28 mm) Platinum EPDM membrane; Additional field membrane securement required if pipe OD exceeds 18" (457 mm). material: RubberGard Platinum, EPDM

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPP-4---PENETRATION-HOT-STACK-FIELD-FABRICATED-FLASHING.pdfData sheet

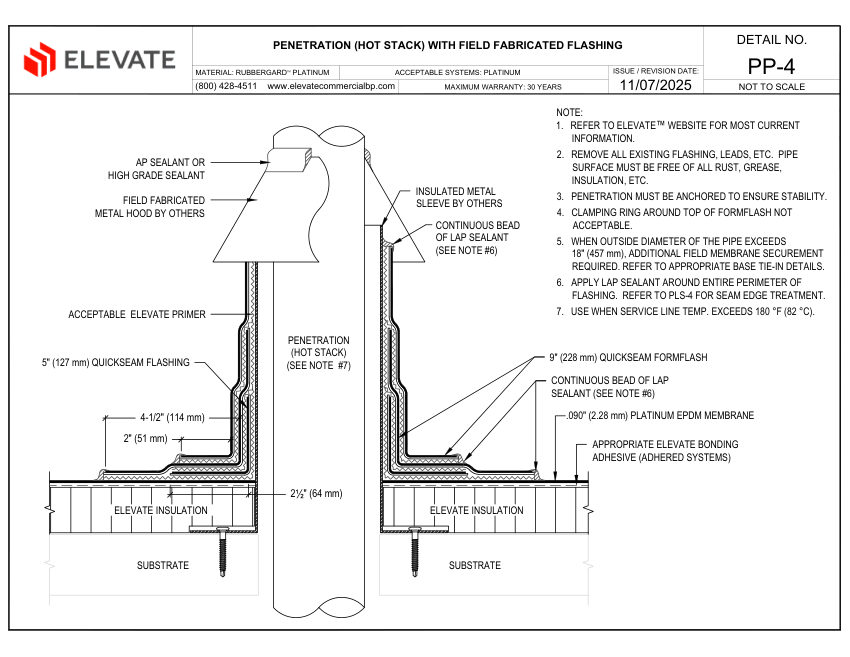

Elevate PP-4 - PENETRATION HOT STACK FIELD FABRICATED FLASHING cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PP-4 - PENETRATION HOT STACK FIELD FABRICATED FLASHING
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPP-4 - PENETRATION HOT STACK FIELD FABRICATED FLASHING
DescriptionElevate Hot Stack Penetration Flashing (Roofing Penetration). Model PP-4. Designed for service line temperatures exceeding 180 °F (82 °C); Requires continuous bead of lap sealant around entire perimeter; Includes 0.090" (2.28 mm) Platinum EPDM membrane; Additional field membrane securement required if pipe OD exceeds 18" (457 mm). material: RubberGard Platinum, EPDM
Connection size4-1/2" (114 mm) pipe
End connectionField fabricated metal hood, Quickseam Formflash
MountingAnchored to substrate
Dimensions9" (228 mm) Formflash, 5" (127 mm) Flashing
ComplianceMax 30 Years Warranty.
