DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePP-7 - PENETRATION WITH METAL PENETRATION POCKET

Elevate Penetration with Metal Penetration Pocket (Roofing Penetration). Model PP-7. Maximum service line temperature 180 °F (82 °C); 30-year maximum warranty; Requires Elevate Pourable Sealer with minimum 2" (51 mm) depth

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPP-7---PENETRATION-WITH-METAL-PENETRATION-POCKET.pdfData sheet

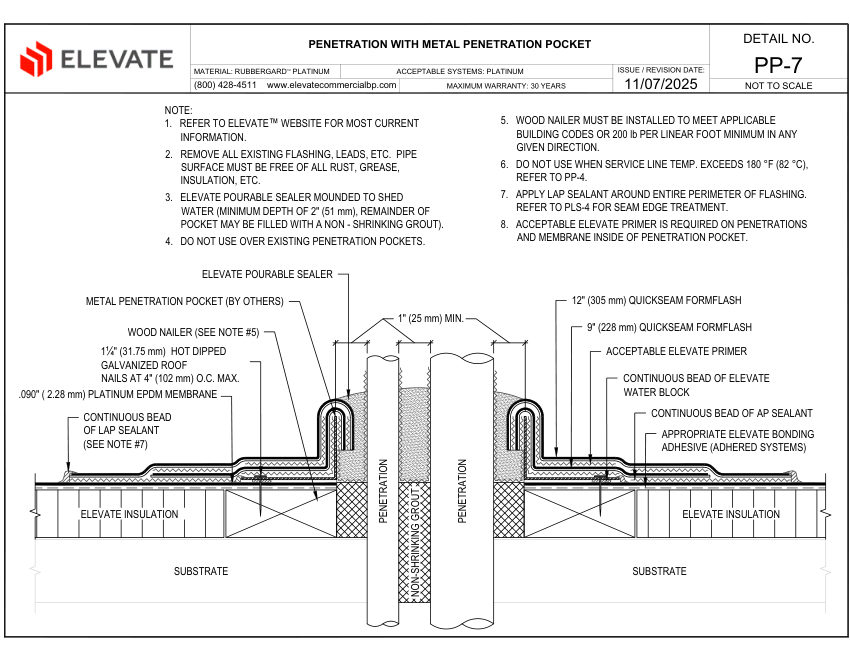

Elevate PP-7 - PENETRATION WITH METAL PENETRATION POCKET cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PP-7 - PENETRATION WITH METAL PENETRATION POCKET
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPP-7 - PENETRATION WITH METAL PENETRATION POCKET
DescriptionElevate Penetration with Metal Penetration Pocket (Roofing Penetration). Model PP-7. Maximum service line temperature 180 °F (82 °C); 30-year maximum warranty; Requires Elevate Pourable Sealer with minimum 2" (51 mm) depth
Acceptable systemsPlatinum. material: RubberGard Platinum, 0.090" (2.28 mm) Platinum EPDM Membrane
Mounting1¼" (31.75 mm) Hot Dipped Galvanized Roof Nails at 4" (102 mm) O.C. Max
Dimensions12" (305 mm) Quickseam Formflash, 9" (228 mm) Quickseam Formflash, 1" (25 mm) Min. Flange
ComplianceWood Nailer 200 lb per linear foot minimum.
