DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePRE-2 - RUBBERGARD PLATINUM ROOF EDGE WITH ANCHORGARD PLATIN

Elevate Roof Edge with Extended Fascia (Roofing). Model PRE-2. Includes Anchorgard Platinum Extended Fascia Cover; Compatible with Platinum EPDM Membrane (0.090 / 2.28 mm); Fastened with #10 x 2" Stainless Steel Fasteners at 12" O.C.; Requires 1/2" (13 mm) minimum substrate. material: RubberGard Platinum, 20 GA. Galvanized Steel, Stainless Steel Fasteners

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPRE-2---RUBBERGARD-PLATINUM-ROOF-EDGE-WITH-ANCHORGARD-PLATIN.pdfData sheet

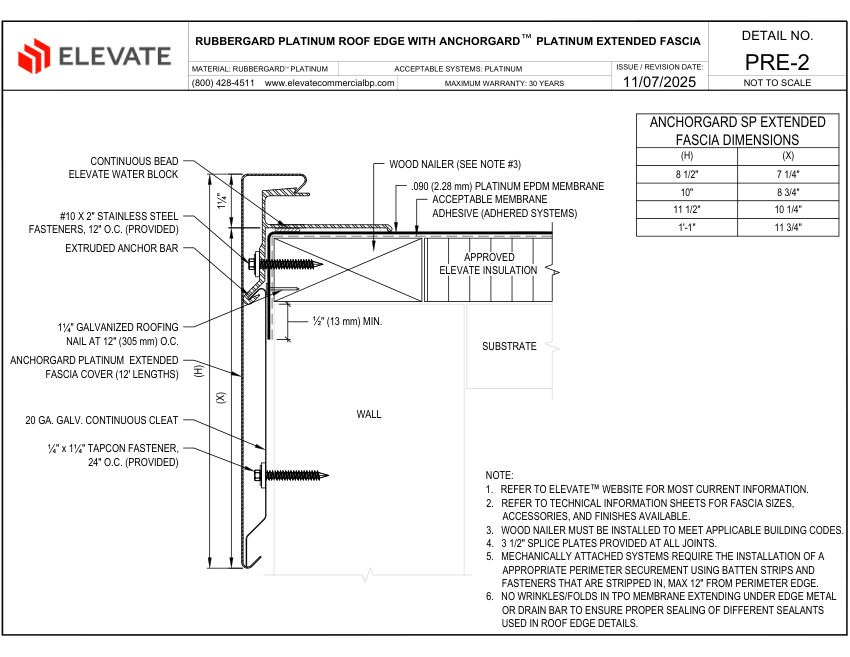

Elevate PRE-2 - RUBBERGARD PLATINUM ROOF EDGE WITH ANCHORGARD PLATIN cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PRE-2 - RUBBERGARD PLATINUM ROOF EDGE WITH ANCHORGARD PLATIN
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPRE-2 - RUBBERGARD PLATINUM ROOF EDGE WITH ANCHORGARD PLATIN
DescriptionElevate Roof Edge with Extended Fascia (Roofing). Model PRE-2. Includes Anchorgard Platinum Extended Fascia Cover; Compatible with Platinum EPDM Membrane (0.090 / 2.28 mm); Fastened with #10 x 2" Stainless Steel Fasteners at 12" O.C.; Requires 1/2" (13 mm) minimum substrate. material: RubberGard Platinum, 20 GA. Galvanized Steel, Stainless Steel Fasteners
Connection size12' Lengths
End connection3 1/2" Splice Plates
MountingMechanically Attached, Adhered Systems
DimensionsH: 8 1/2" to 1'-1", X: 7 1/4" to 11 3/4"
Compliance30 Year Maximum Warranty.
