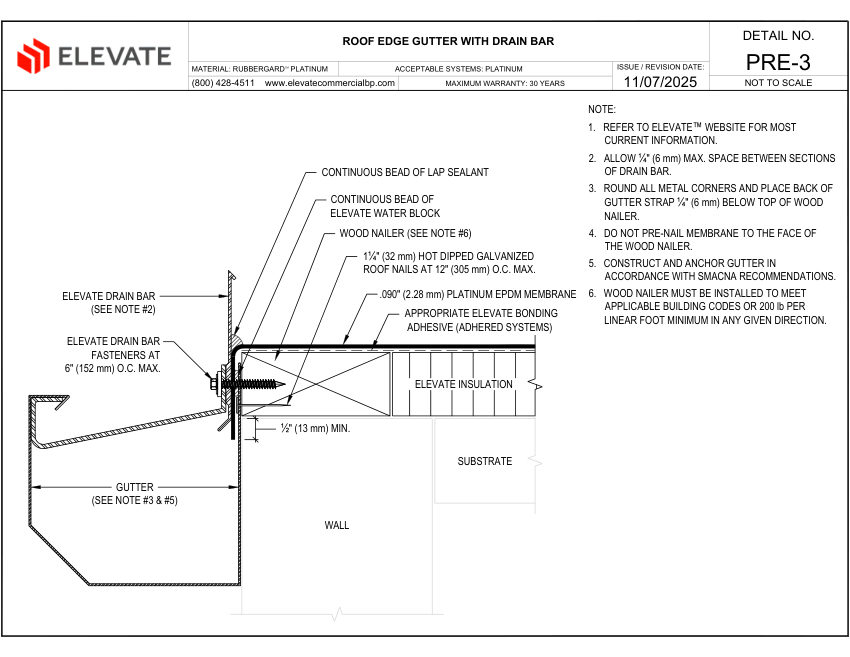

ElevatePRE-3 - ROOF EDGE GUTTER WITH DRAIN BAR

Name: Elevate PRE-3 - ROOF EDGE GUTTER WITH DRAIN BAR
Brand: Elevate
SKU: PRE-3 - ROOF EDGE GUTTER WITH DRAIN BAR

Elevate Roof Edge Gutter with Drain Bar (Roofing). Model PRE-3. Material: RubberGard Platinum

Free to start · No card required · The agent pulls this cut sheet in automatically

Product details

Catalog number	PRE-3 - ROOF EDGE GUTTER WITH DRAIN BAR
Description	Elevate Roof Edge Gutter with Drain Bar (Roofing). Model PRE-3. Material: RubberGard Platinum
Membrane	0.090" (2.28 mm) Platinum EPDM
Fasteners	1.25" (32 mm) Hot Dipped Galvanized Roof Nails at 12" (305 mm) O.C. Max
Drain Bar Spacing	1/4" (6 mm) Max Space Between Sections. material: RubberGard Platinum, 0.090" (2.28 mm) Platinum EPDM Membrane, 1.25" (32 mm) Hot Dipped Galvanized Roof Nails
Mounting	Wood Nailer, Elevate Drain Bar Fasteners at 6" (152 mm) O.C. Max
Dimensions	1/4" (6 mm) Max Space Between Sections of Drain Bar
Compliance	SMACNA Recommendations, Applicable Building Cod
