DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePRE-4 - ROOF EDGE GUTTER WITH FLANGEPRE-4 - ROOF EDGE GUTTER WITH FLANGE

Elevate Roof Edge Gutter with Flange (Roofing). Model PRE-4. Maximum warranty of 30 years; Requires lap sealant along upslope edge if roof slope is 1" (25 mm) per foot or greater; Wood nailer must support 200 lb per linear foot minimum; Gutter flange must be fully supported by wood and terminated at least 1/2" (13 mm) from edge. material: RubberGard Platinum, 0.090" (2.28 mm) Platinum EPDM Membrane, Hot Dipped Galvanized Roof Nails

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPRE-4---ROOF-EDGE-GUTTER-WITH-FLANGE.pdfData sheet

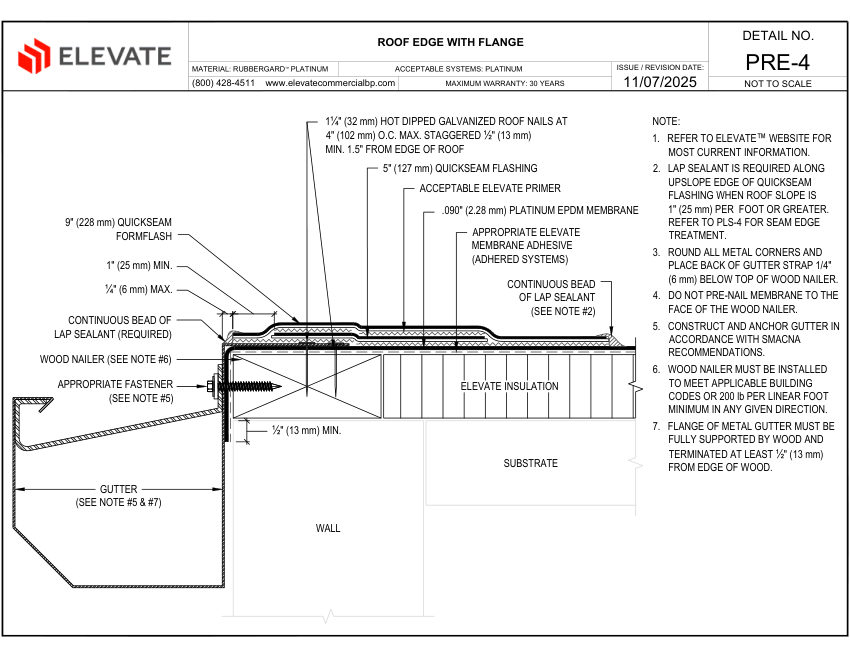

Elevate PRE-4 - ROOF EDGE GUTTER WITH FLANGE cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PRE-4 - ROOF EDGE GUTTER WITH FLANGE
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPRE-4 - ROOF EDGE GUTTER WITH FLANGE
DescriptionElevate Roof Edge Gutter with Flange (Roofing). Model PRE-4. Maximum warranty of 30 years; Requires lap sealant along upslope edge if roof slope is 1" (25 mm) per foot or greater; Wood nailer must support 200 lb per linear foot minimum; Gutter flange must be fully supported by wood and terminated at least 1/2" (13 mm) from edge. material: RubberGard Platinum, 0.090" (2.28 mm) Platinum EPDM Membrane, Hot Dipped Galvanized Roof Nails
MountingWood Nailer, 1.5" (38 mm) min from edge of roof
Dimensions9" (228 mm) QuickSeam FormFlash, 5" (127 mm) QuickSeam Flashing
ComplianceSMACNA Recommen
