ElevatePRE-6 - ROOF EDGE WITH FASCIA METAL BY OTHERS

Elevate Roof Edge with Fascia Metal (Roofing Detail). Model PRE-6. Maximum warranty of 30 years; Requires 9" (229 mm) Quickseam Formflash extending to within ¼" (6 mm) of metal edge; Wood nailer must meet 200 lb per linear foot minimum; Lap sealant required along upslope edge if roof slope is 1" (25 mm) per foot or greater. material: RubberGard Platinum EPDM Membrane, Hot Dipped Galvanized Roof Nails, Wood Nailer

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPRE-6---ROOF-EDGE-WITH-FASCIA-METAL-BY-OTHERS.pdfData sheet

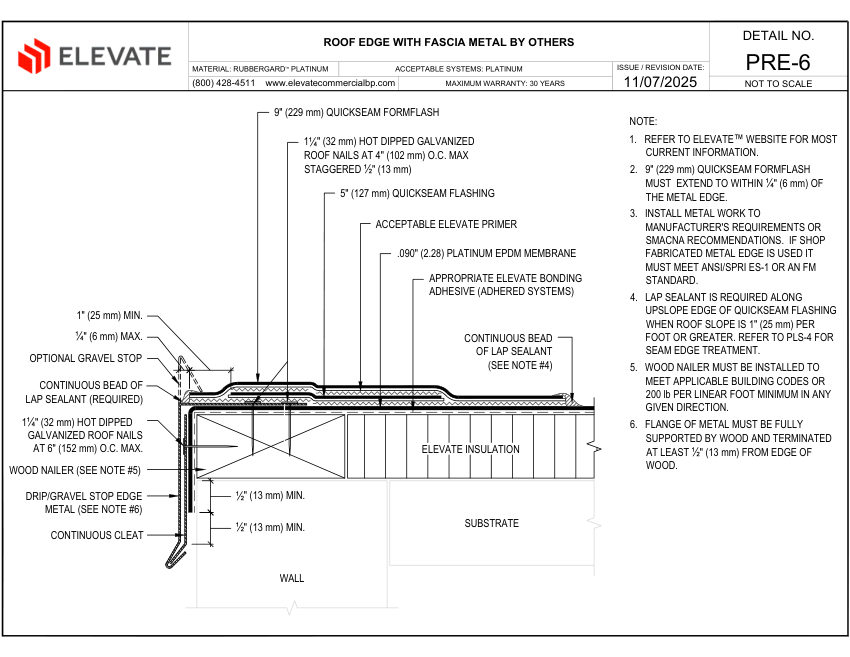

Elevate PRE-6 - ROOF EDGE WITH FASCIA METAL BY OTHERS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PRE-6 - ROOF EDGE WITH FASCIA METAL BY OTHERS
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPRE-6 - ROOF EDGE WITH FASCIA METAL BY OTHERS
DescriptionElevate Roof Edge with Fascia Metal (Roofing Detail). Model PRE-6. Maximum warranty of 30 years; Requires 9" (229 mm) Quickseam Formflash extending to within ¼" (6 mm) of metal edge; Wood nailer must meet 200 lb per linear foot minimum; Lap sealant required along upslope edge if roof slope is 1" (25 mm) per foot or greater. material: RubberGard Platinum EPDM Membrane, Hot Dipped Galvanized Roof Nails, Wood Nailer
Mounting1¼" (32 mm) Hot Dipped Galvanized Roof Nails at 4" (102 mm) O.C. Max
Dimensions9" (229 mm) Quickseam Formflash, 5" (127 mm) Quickseam Flashing
ComplianceANSI/SPRI ES-
