DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePT-10 - TERMINATION AT RTU WITH QUICKSEAM RPF & COUNTER-FLAS

Elevate Roof Termination Detail (Roofing Termination). Model PT-10. Maximum warranty of 30 years; Nailing and metal counter-flashing not required if membrane is run up and over curb walls; Metal counter-flashing shall be 24 gauge pre-finished steel or 0.032" min. aluminum; Maximum 6" (152 mm) long fasteners. material: RubberGard Platinum, 0.090" (2.28 mm) Platinum EPDM Membrane, 24 Gauge Pre-Finished Steel or 0.032" Min. Aluminum

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPT-10---TERMINATION-AT-RTU-WITH-QUICKSEAM-RPF-COUNTER-FLAS.pdfData sheet

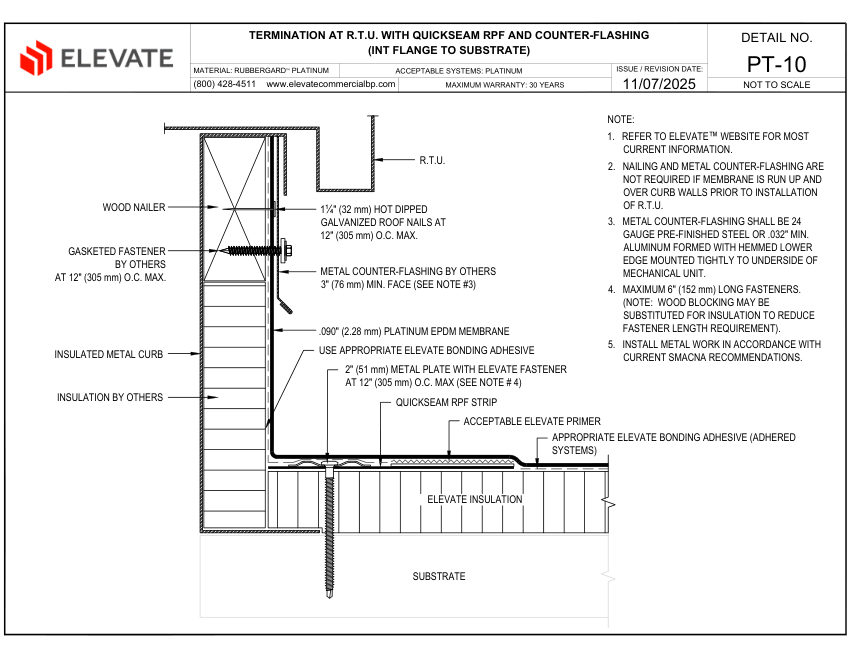

Elevate PT-10 - TERMINATION AT RTU WITH QUICKSEAM RPF & COUNTER-FLAS cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PT-10 - TERMINATION AT RTU WITH QUICKSEAM RPF & COUNTER-FLAS
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPT-10 - TERMINATION AT RTU WITH QUICKSEAM RPF & COUNTER-FLAS
DescriptionElevate Roof Termination Detail (Roofing Termination). Model PT-10. Maximum warranty of 30 years; Nailing and metal counter-flashing not required if membrane is run up and over curb walls; Metal counter-flashing shall be 24 gauge pre-finished steel or 0.032" min. aluminum; Maximum 6" (152 mm) long fasteners. material: RubberGard Platinum, 0.090" (2.28 mm) Platinum EPDM Membrane, 24 Gauge Pre-Finished Steel or 0.032" Min. Aluminum
End connectionQuickSeam RPF Strip, Metal Counter-Flashing
FinishPre-Finished Steel
MountingUnit Flange Mounted to Substrate
Dimensions3" (76 mm) Min. Face,
