DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePTPM-BT-02 (PUT-BT-02 & PKE-BT-02) - BASE TIE-IN WITH SEAM P

Elevate Base Tie-In with Seam Plates (Roofing Detail). Model PTPM-BT-02. Compatible with all Elevate systems; Requires 80 mil TPO or 80 mil PVC for 30-year warranty; Fasteners spaced at 12" O.C. maximum; Membrane must extend 1/2" beyond HD or HD Plus seam plate. material: 80 mil Platinum UltraPly TPO, Elevate PVC KEE, Elevate Max PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPM-BT-02-PUT-BT-02-PKE-BT-02---BASE-TIE-IN-WITH-SEAM-P.pdfData sheet

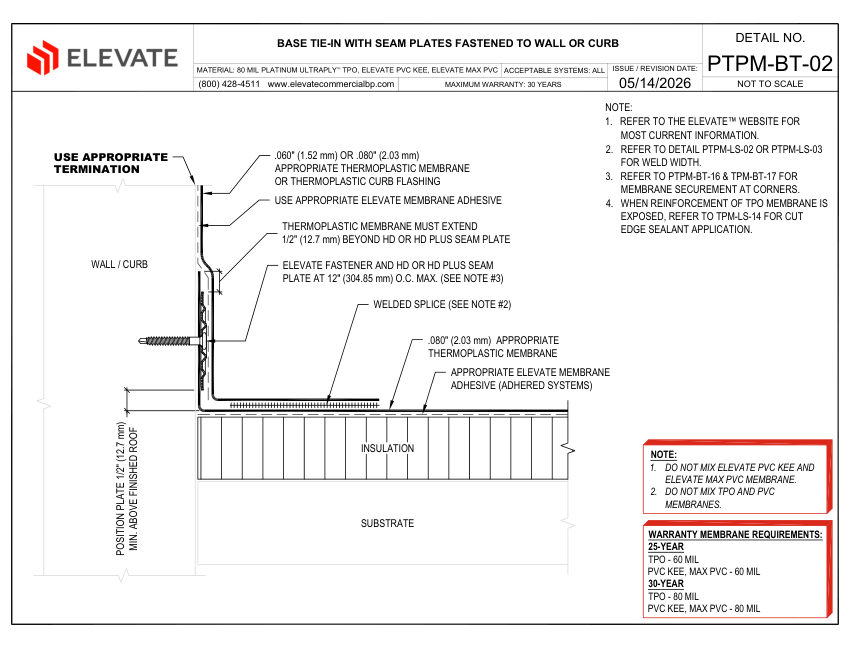

Elevate PTPM-BT-02 (PUT-BT-02 & PKE-BT-02) - BASE TIE-IN WITH SEAM P cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPM-BT-02 (PUT-BT-02 & PKE-BT-02) - BASE TIE-IN WITH SEAM P
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPM-BT-02 (PUT-BT-02 & PKE-BT-02) - BASE TIE-IN WITH SEAM P
DescriptionElevate Base Tie-In with Seam Plates (Roofing Detail). Model PTPM-BT-02. Compatible with all Elevate systems; Requires 80 mil TPO or 80 mil PVC for 30-year warranty; Fasteners spaced at 12" O.C. maximum; Membrane must extend 1/2" beyond HD or HD Plus seam plate. material: 80 mil Platinum UltraPly TPO, Elevate PVC KEE, Elevate Max PVC
Connection size12" (304.85 mm) O.C. max fastener spacing
End connectionWelded splice, Elevate fastener and HD or HD Plus seam plate
MountingFastened to wall or curb
DimensionsMembrane extends 1/2" (12.7 mm) beyond seam plate; Plate positioned 1/2" (12.7
