DIV 07 · THERMAL & MOISTUREROOFINGCUT SHEET INDEXED

ElevatePTPM -E-08 (PKE-E-04 & PKE-E-04) - EXPANSION JOINT (MANUFACT

Elevate Expansion Joint (Manufactured Cover) with Wide Weld Splice (Roofing Expansion Joint). Model PTPM-E-08. Compatible with TPO, PVC KEE, and MAX PVC membranes; Requires 80 MIL membrane for 30-year warranty; Fasteners must be maximum 10" (254 mm) long; Not acceptable for paver or ballast systems. material: 80 MIL TPO, PVC KEE, MAX PVC

Add to a submittalDownload cut sheet

Free to start · No card required · The agent pulls this cut sheet in automatically

PDFPTPM--E-08-PKE-E-04-PKE-E-04---EXPANSION-JOINT-MANUFACT.pdfData sheet

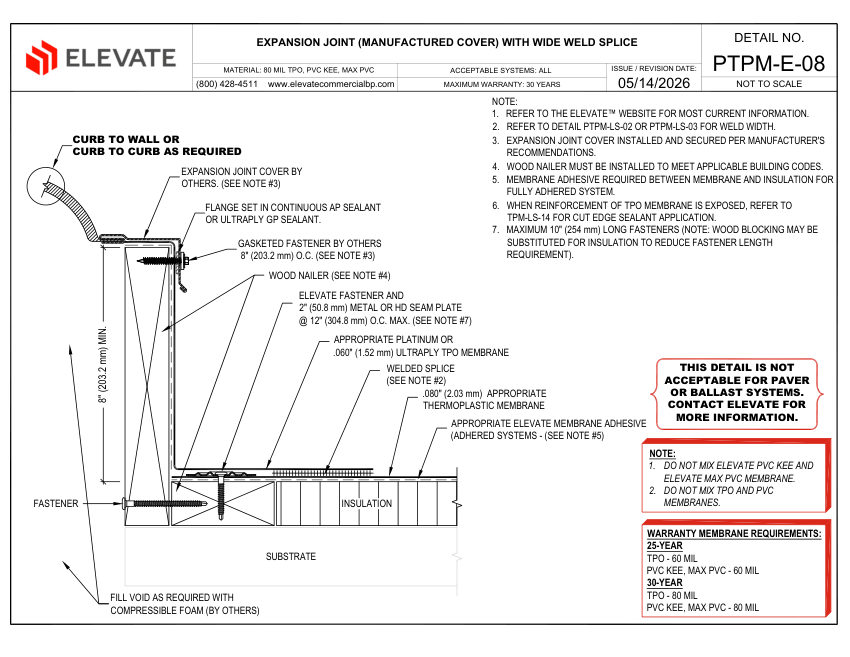

Elevate PTPM -E-08 (PKE-E-04 & PKE-E-04) - EXPANSION JOINT (MANUFACT cut sheet — first page
Official manufacturer data sheetOpen PDF ↗
Manufacturer
Elevate
Catalog no.
PTPM -E-08 (PKE-E-04 & PKE-E-04) - EXPANSION JOINT (MANUFACT
Product type
Roofing
MasterFormat
07
Cut sheet
PDF · manufacturer current

Product details

Catalog numberPTPM -E-08 (PKE-E-04 & PKE-E-04) - EXPANSION JOINT (MANUFACT
DescriptionElevate Expansion Joint (Manufactured Cover) with Wide Weld Splice (Roofing Expansion Joint). Model PTPM-E-08. Compatible with TPO, PVC KEE, and MAX PVC membranes; Requires 80 MIL membrane for 30-year warranty; Fasteners must be maximum 10" (254 mm) long; Not acceptable for paver or ballast systems. material: 80 MIL TPO, PVC KEE, MAX PVC
End connectionWelded Splice
MountingGasketed Fastener 8" O.C., Wood Nailer, 2" Metal or HD Seam Plate @ 12" O.C. Max
Dimensions8" (203.2 mm) Min. Curb to Wall/Curb
Compliance30-Year Warranty (80 MIL Membrane).
